Wye – Wye Auto Transformer
Product ID: 5578

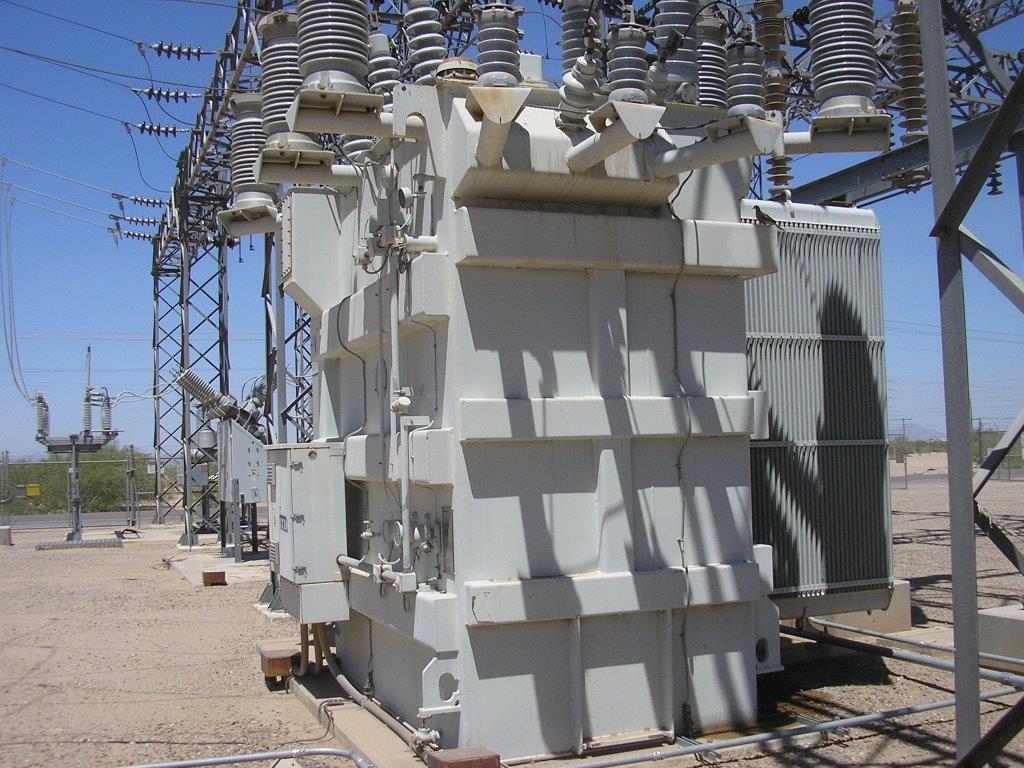

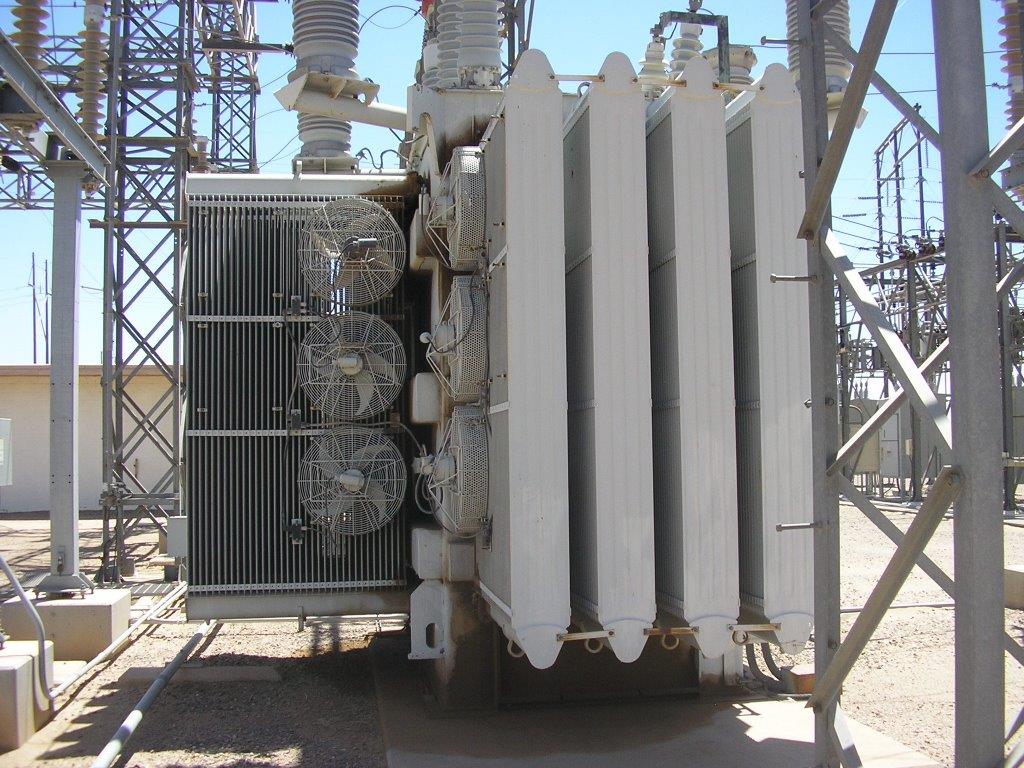

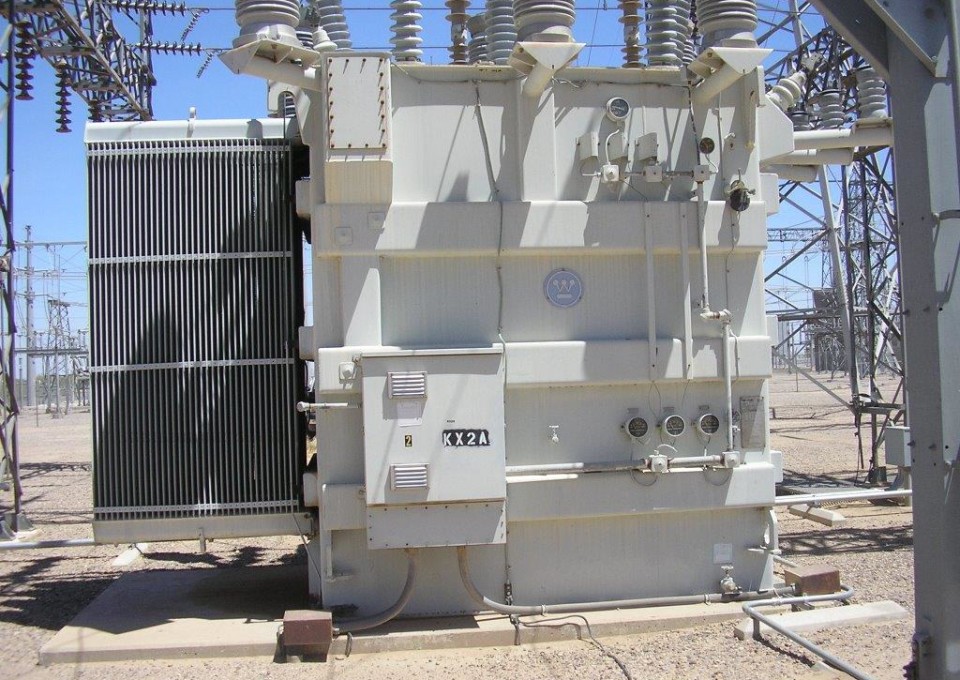

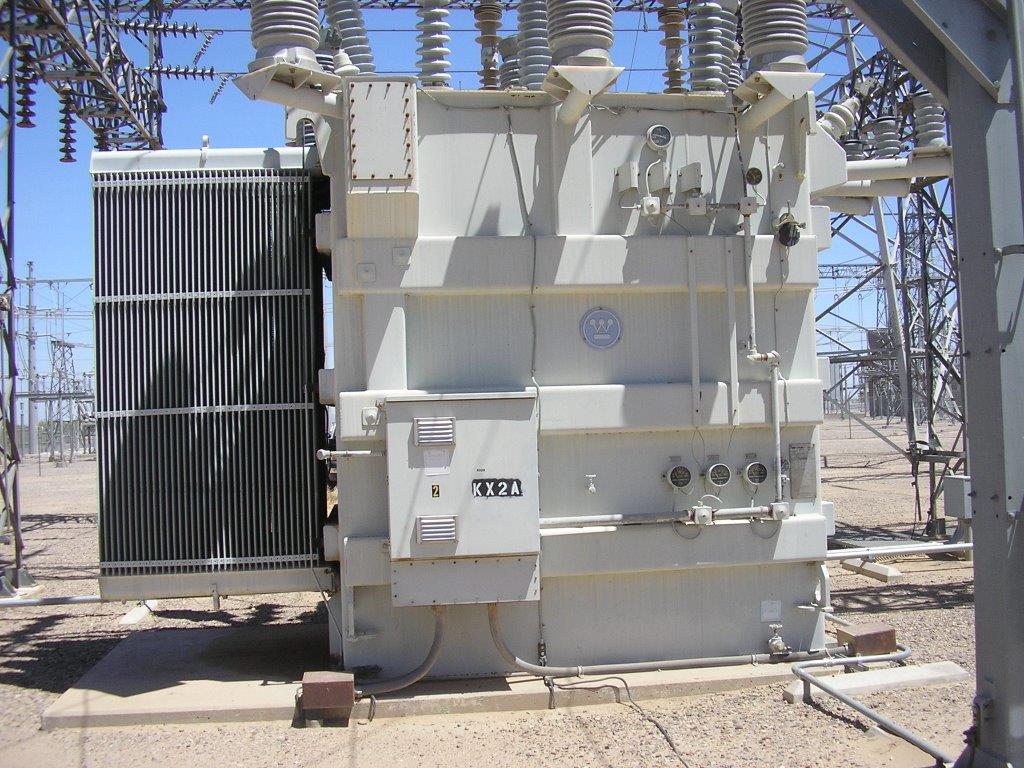

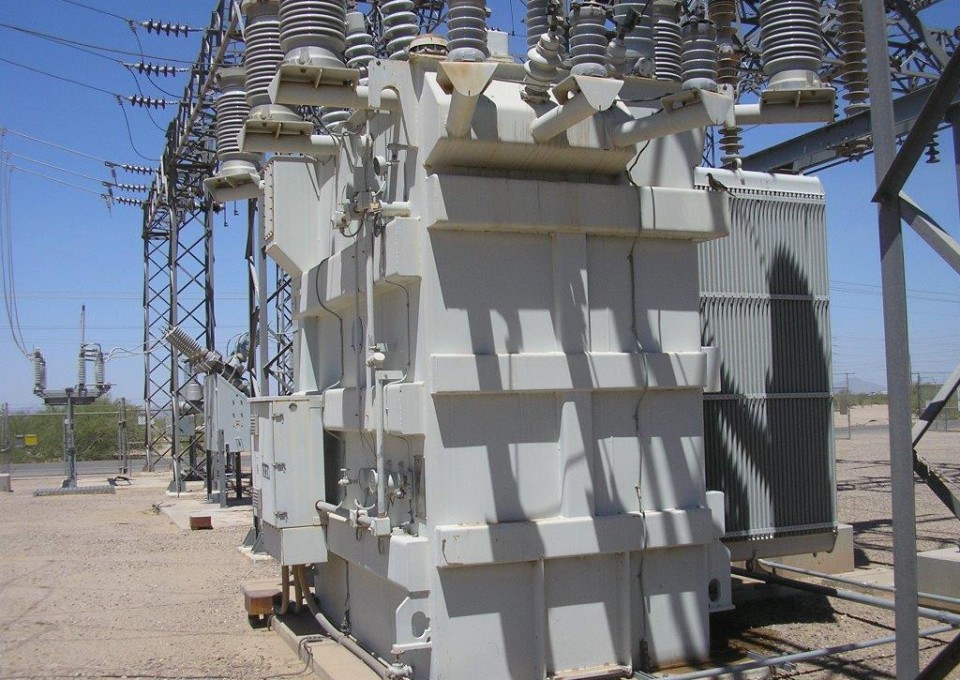

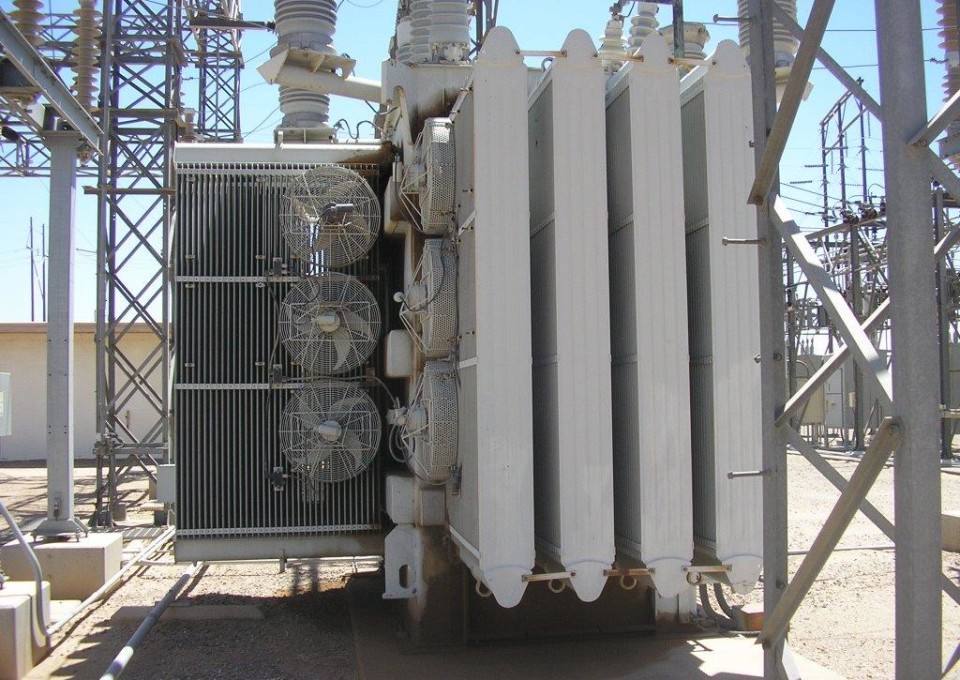

115 kV Wye - 69 kV Wye with 12.47 kV Delta Tertiary Auto Transformer
- Size: 25/33.3/41.667 MVA
- HV_H: 115000
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 69000
- LV_2_Y: 12470
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Wye
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector: Delta
- High Voltage Bushing: Top
- Low Voltage Bushing: Top
- HV2 Bushing:
- LV2 Bushing: Top
- Station Type: Auto
- Live Dead:
- Feed:
- Type: Oil
- Width:
- Length:
- Height:
- Weight: 121000
- Phase: 3
- HZ: 60
- DOM: 1974
- MFG: Westinghouse
