Westinghouse Substation
Product ID: 5715

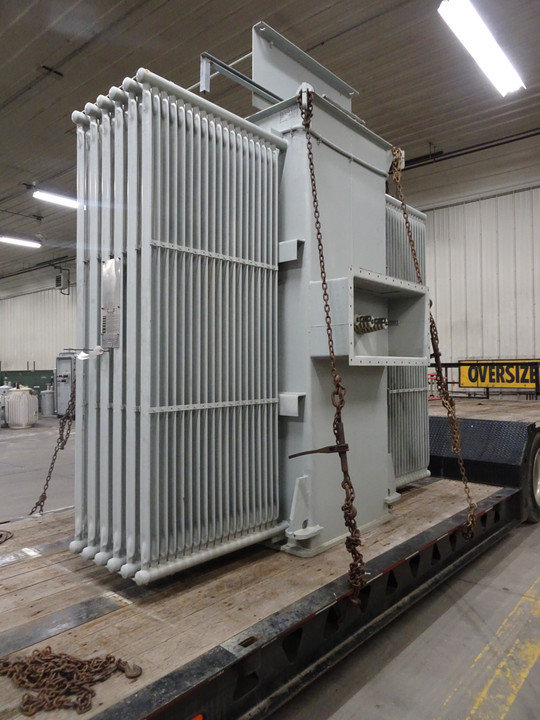

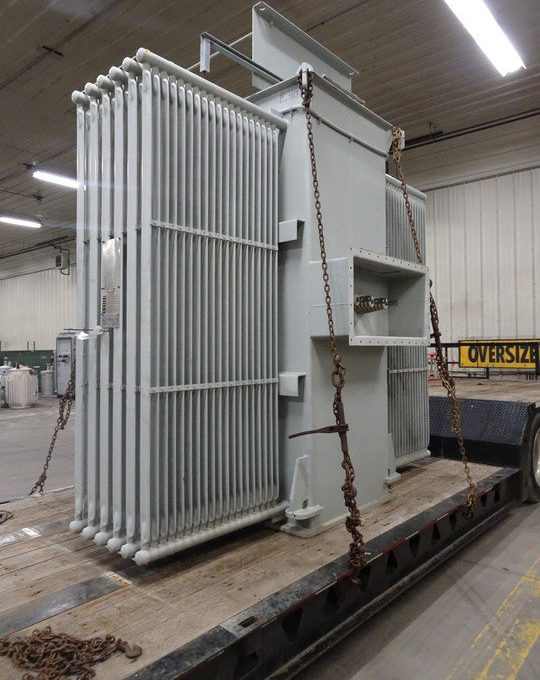

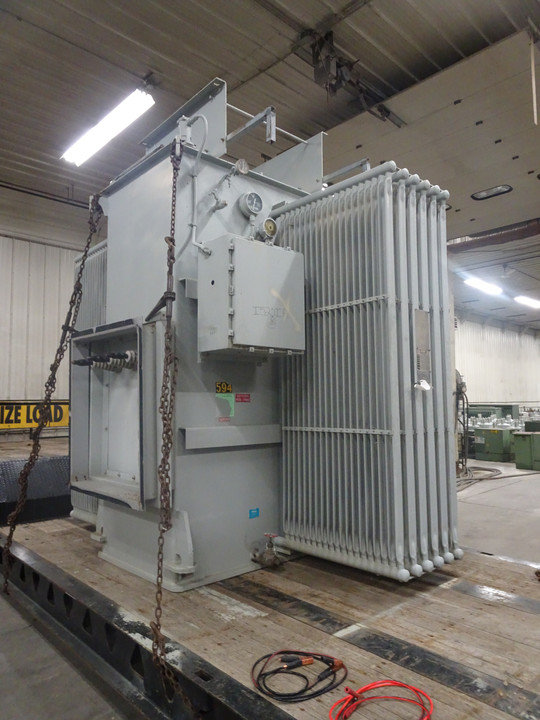

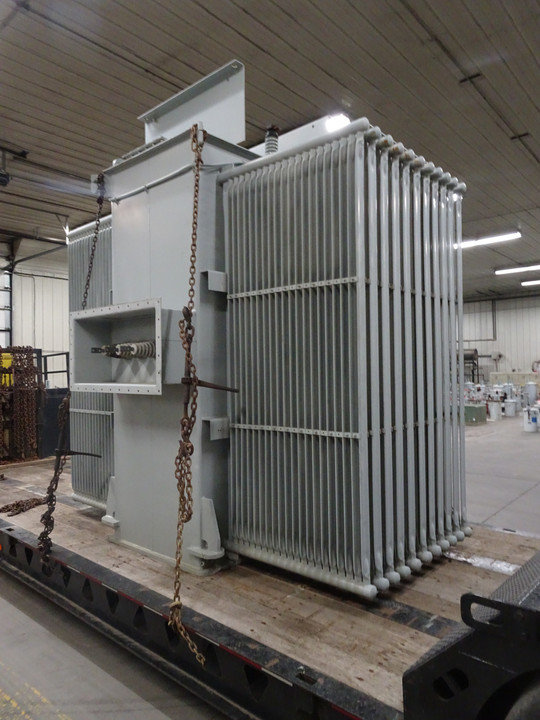

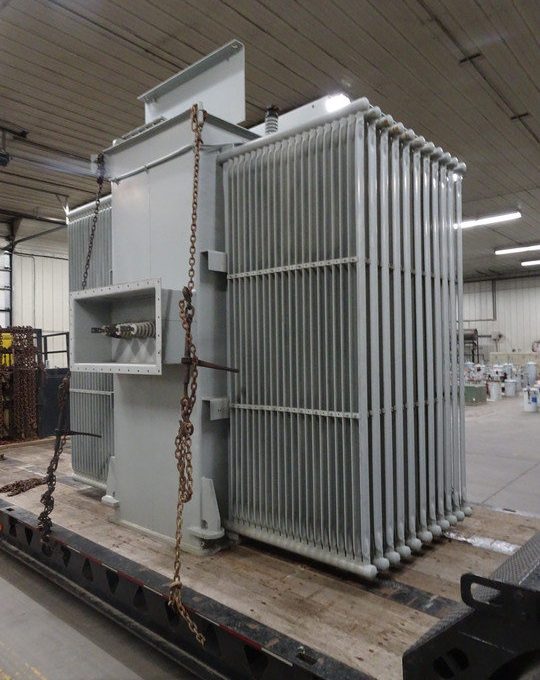

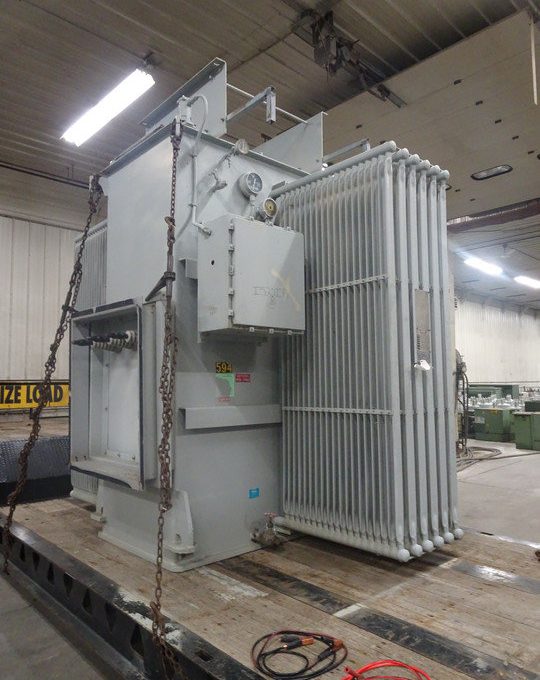

Westinghouse Substation Transformer, 13.8 kV Delta Primary, 4.16/2.4 kV Wye Secondary, 5 MVA
- Size: 5/5.6/6.25/7 MVA
- HV_H: 13800
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 4160
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Cover Mounted
- Low Voltage Bushing: Sidewall Tank Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Step down
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight: 23450
- Phase: 3
- HZ: 60
- DOM: 1992
- MFG: Westinghouse
