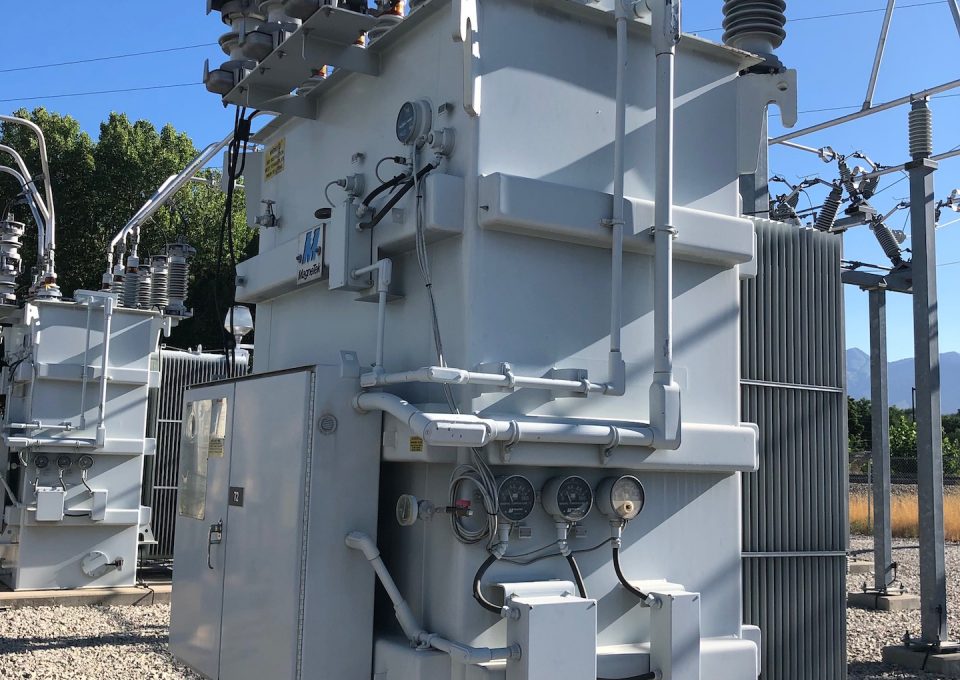

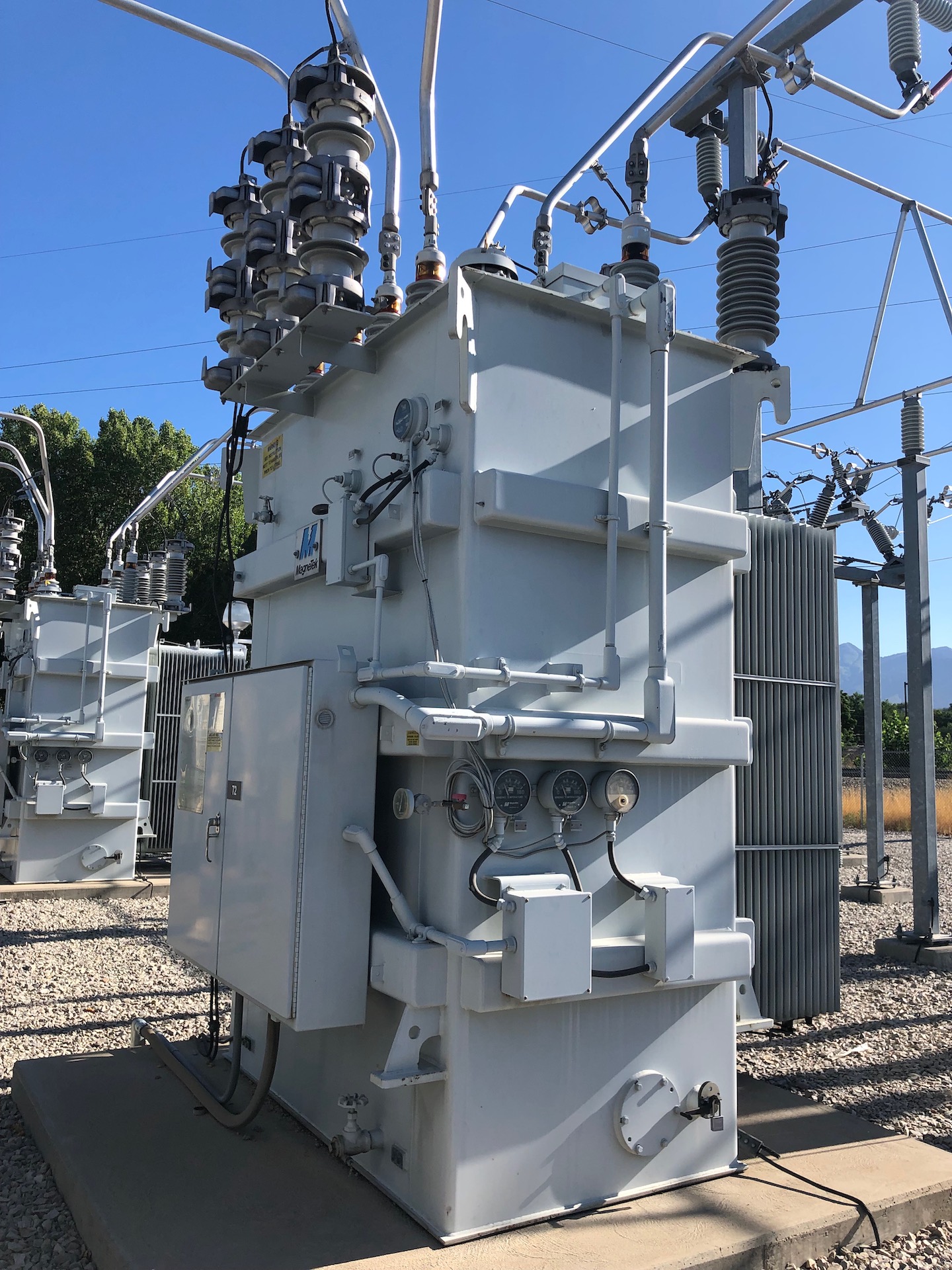

Magnetek Substation Stepdown
Product ID: 5709
Magnetek Substation Transformer, 5/5.6/6.25/7 MVA, 43.8 kV Delta to dual secondary 12.47/7.2 kV Wye or 4.16/2.4 kV Wye
- Size: 5/5.6/6.25/7 MVA
- HV_H: 43800
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 12470
- LV_2_Y: 4160
- LV2 Type:
- Dual LV: 1
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector: Wye
- High Voltage Bushing: Top Cover Mounted
- Low Voltage Bushing: Top Cover Mounted
- HV2 Bushing:
- LV2 Bushing: Top Cover Mounted
- Station Type: Substation Stepdown Transformer
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width:
- Length:
- Height:
- Weight: 42300
- Phase: 3
- HZ: 60
- DOM: 1994
- MFG: Magnetek/Waukesha
