Kuhlman Substation Transformer LTC

Product ID: 5652

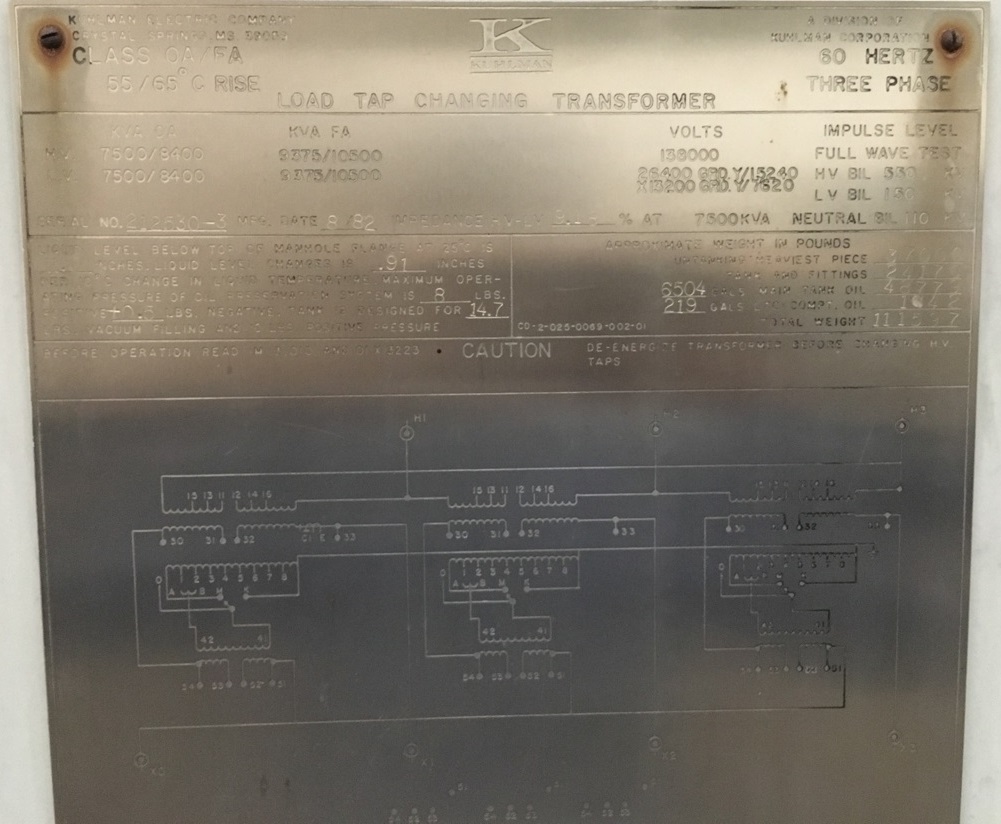

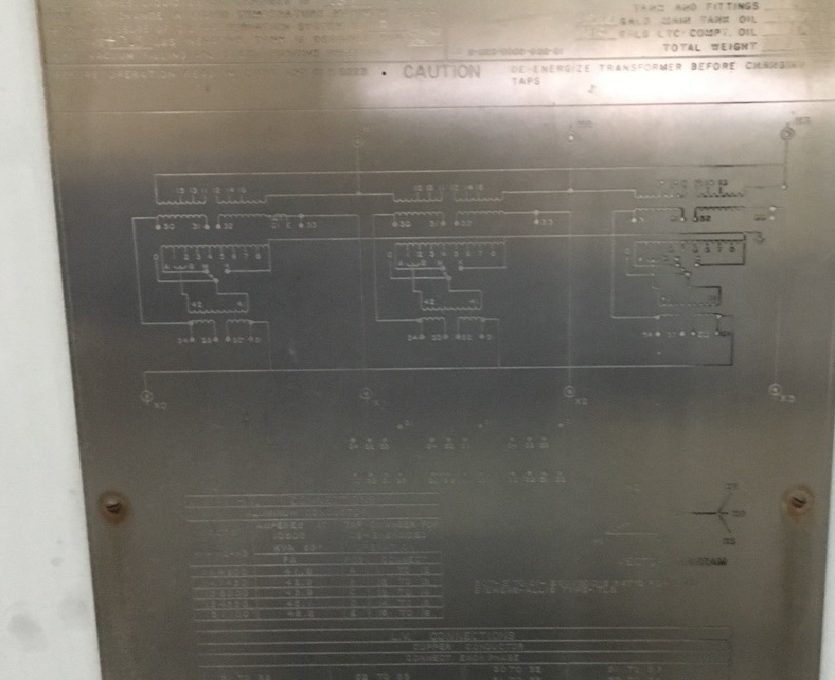

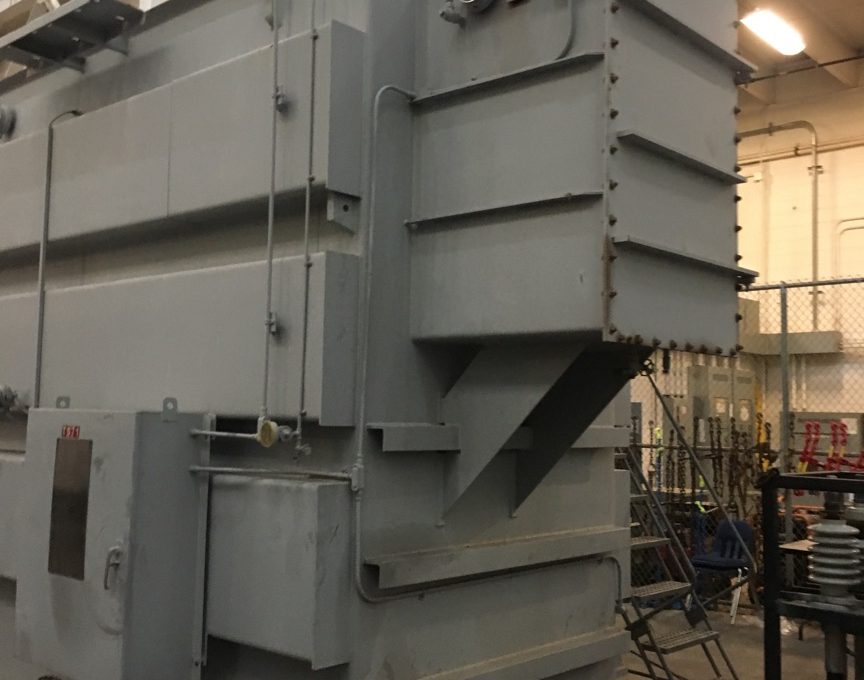

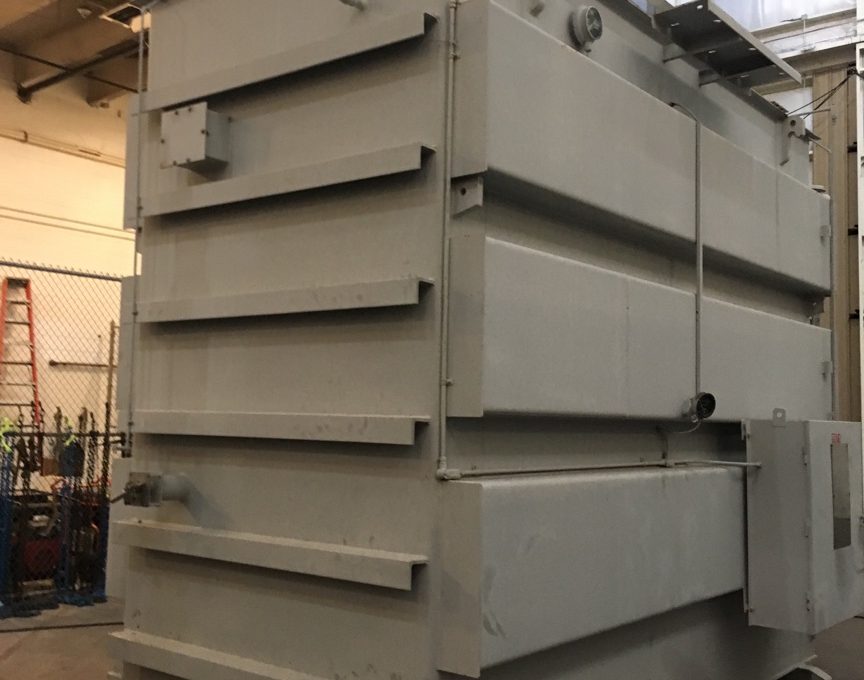

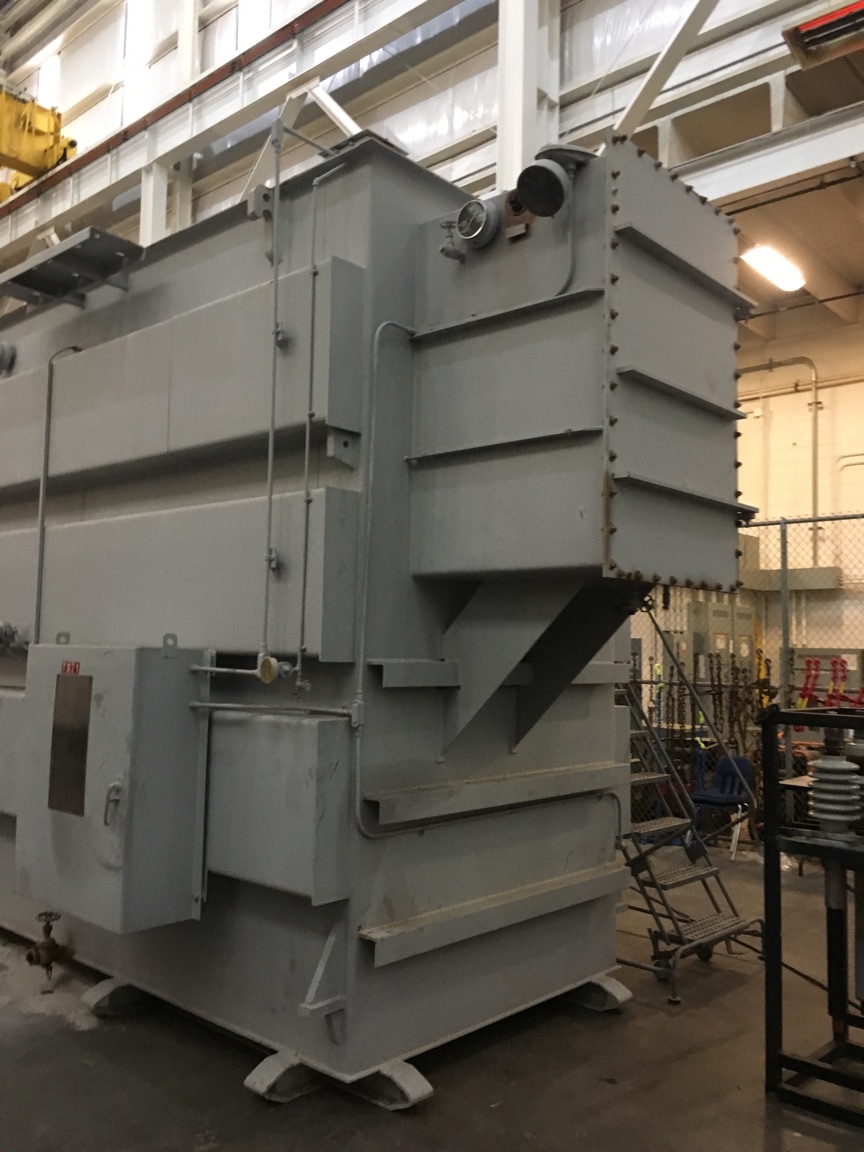

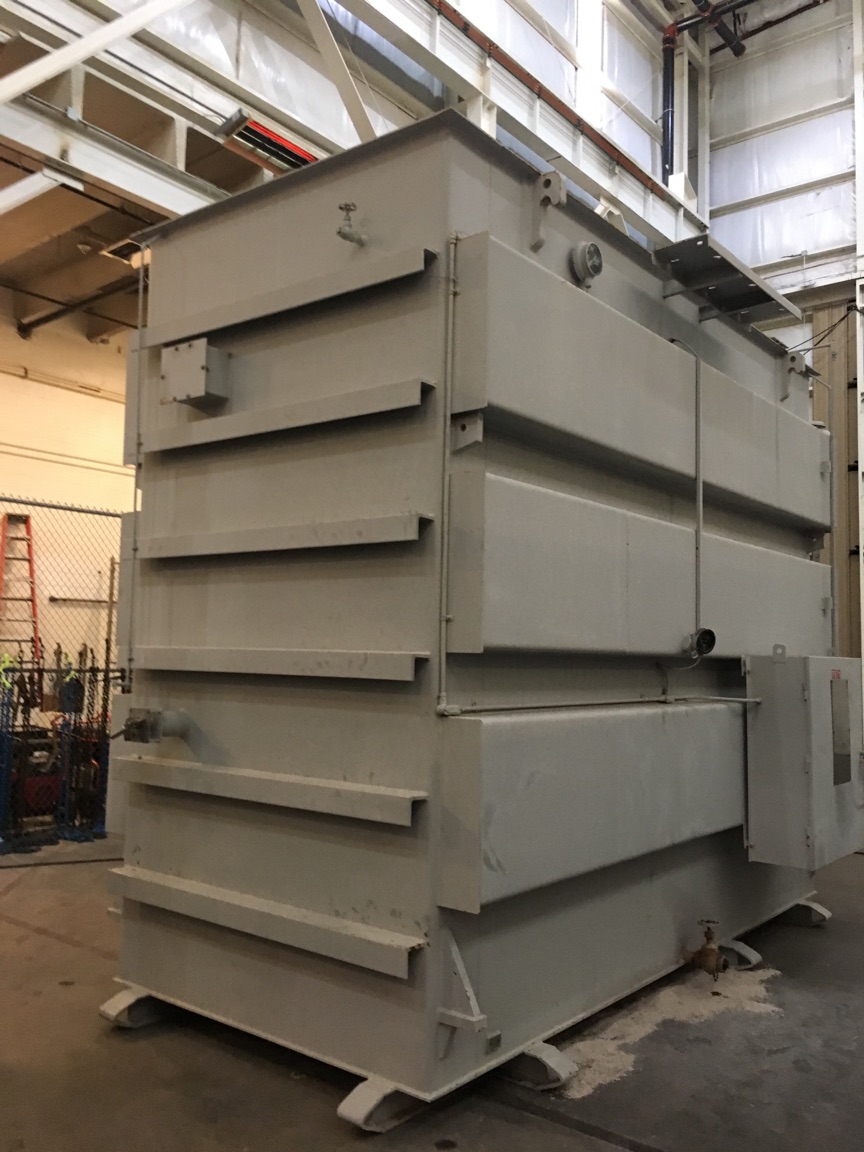

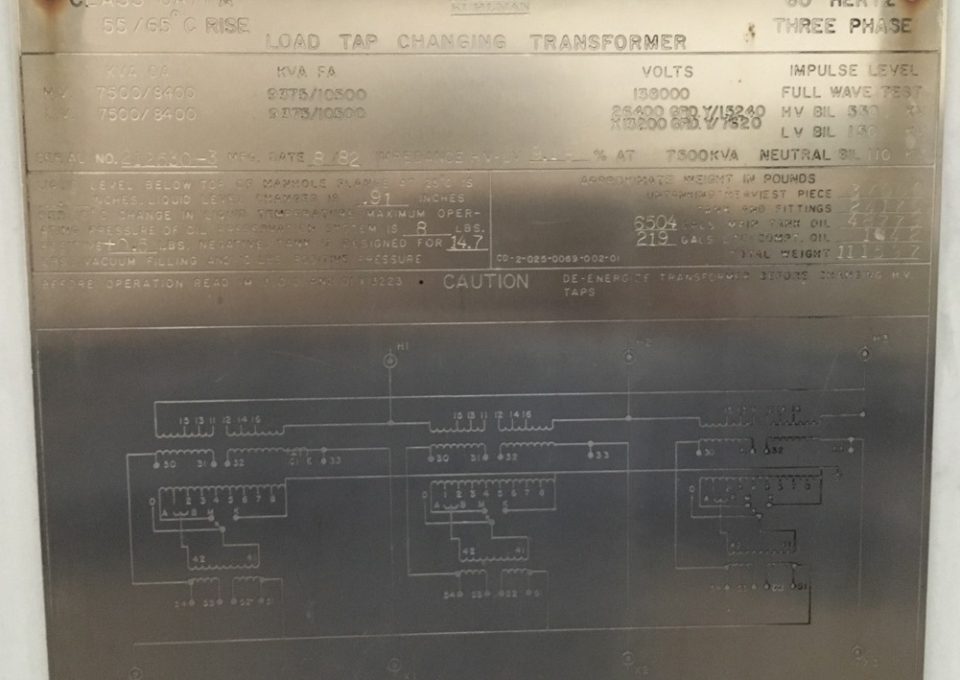

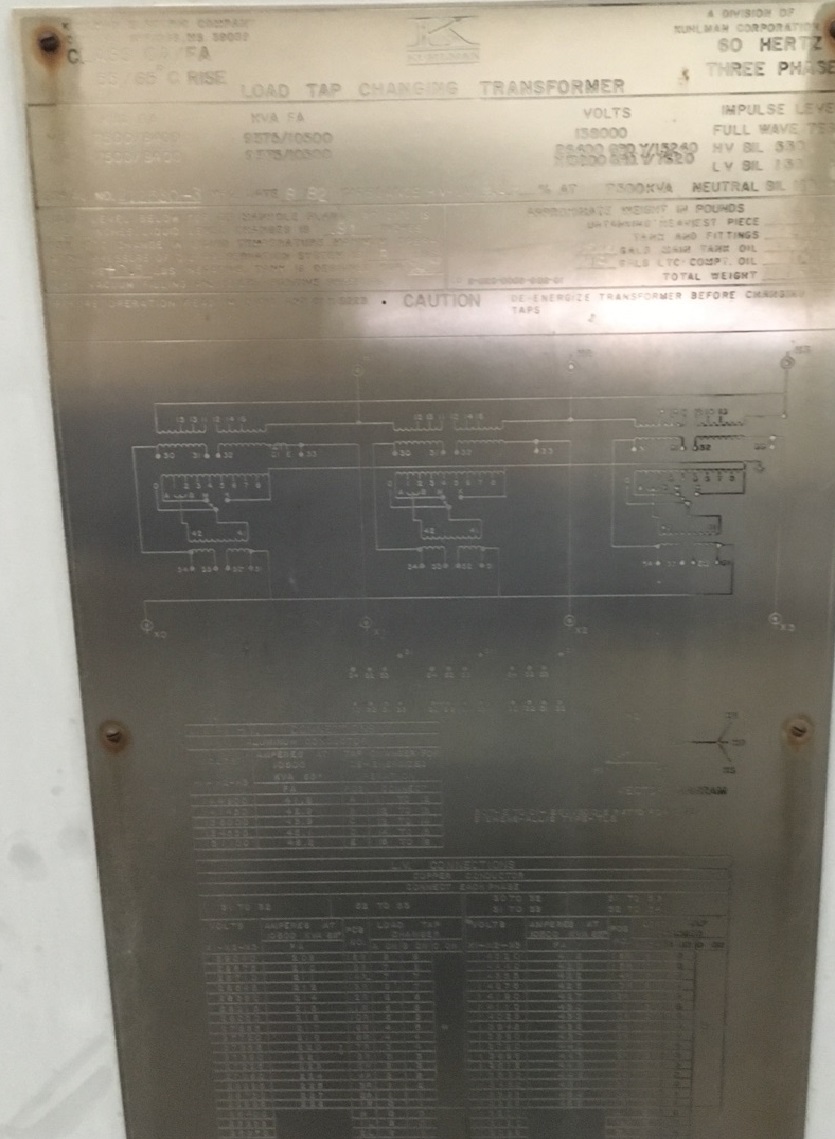

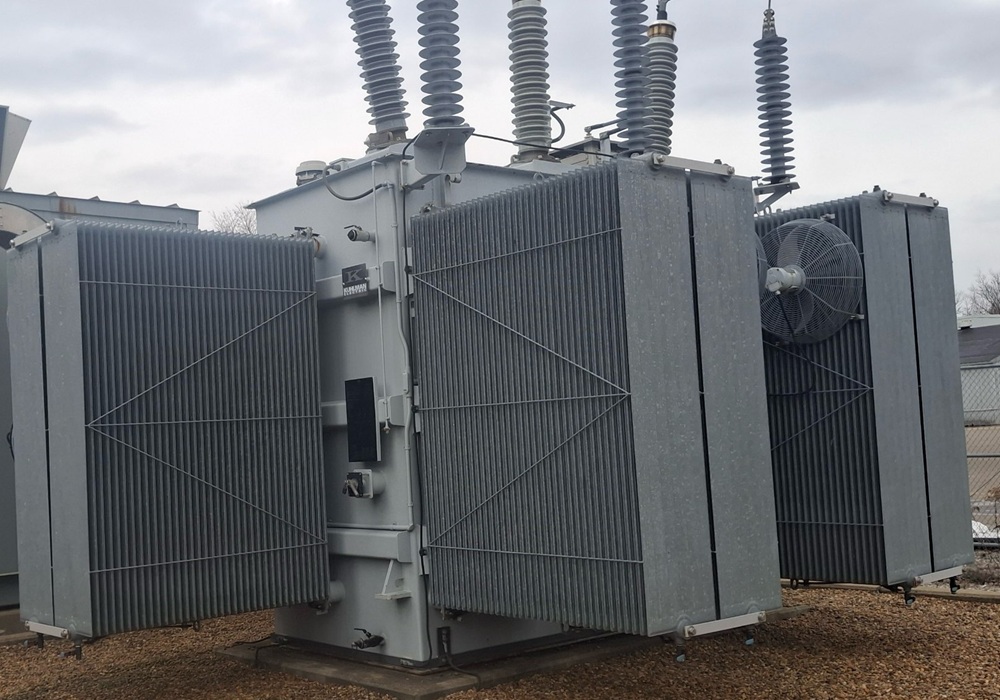

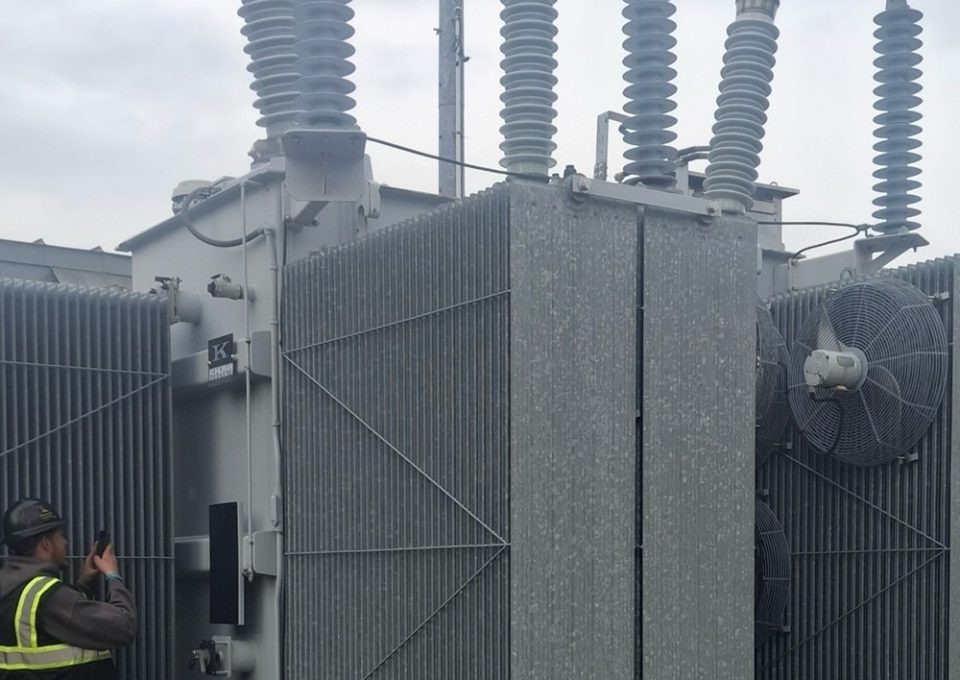

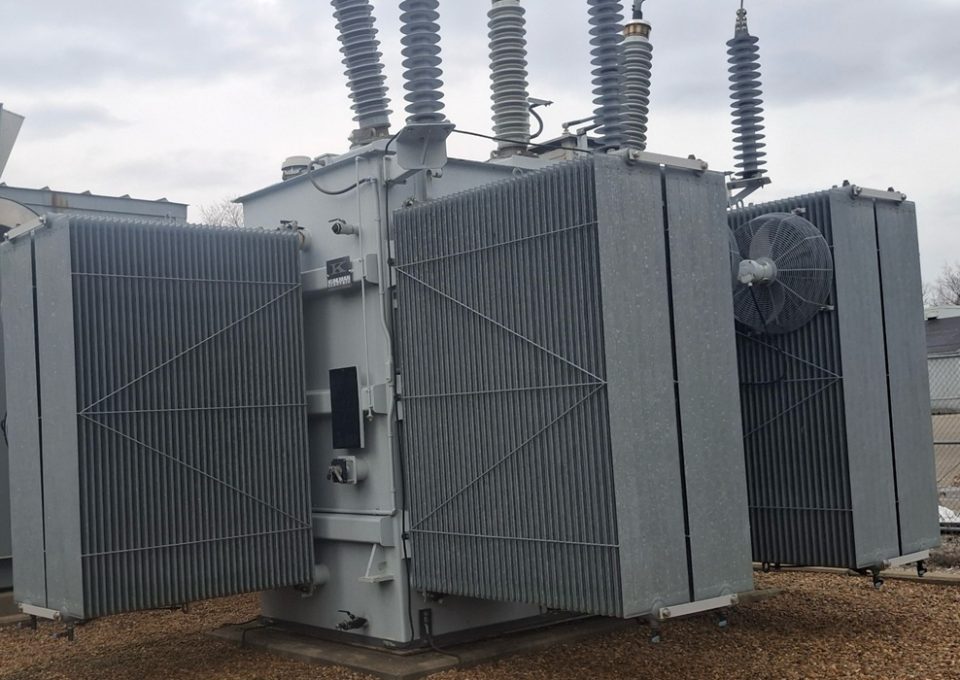

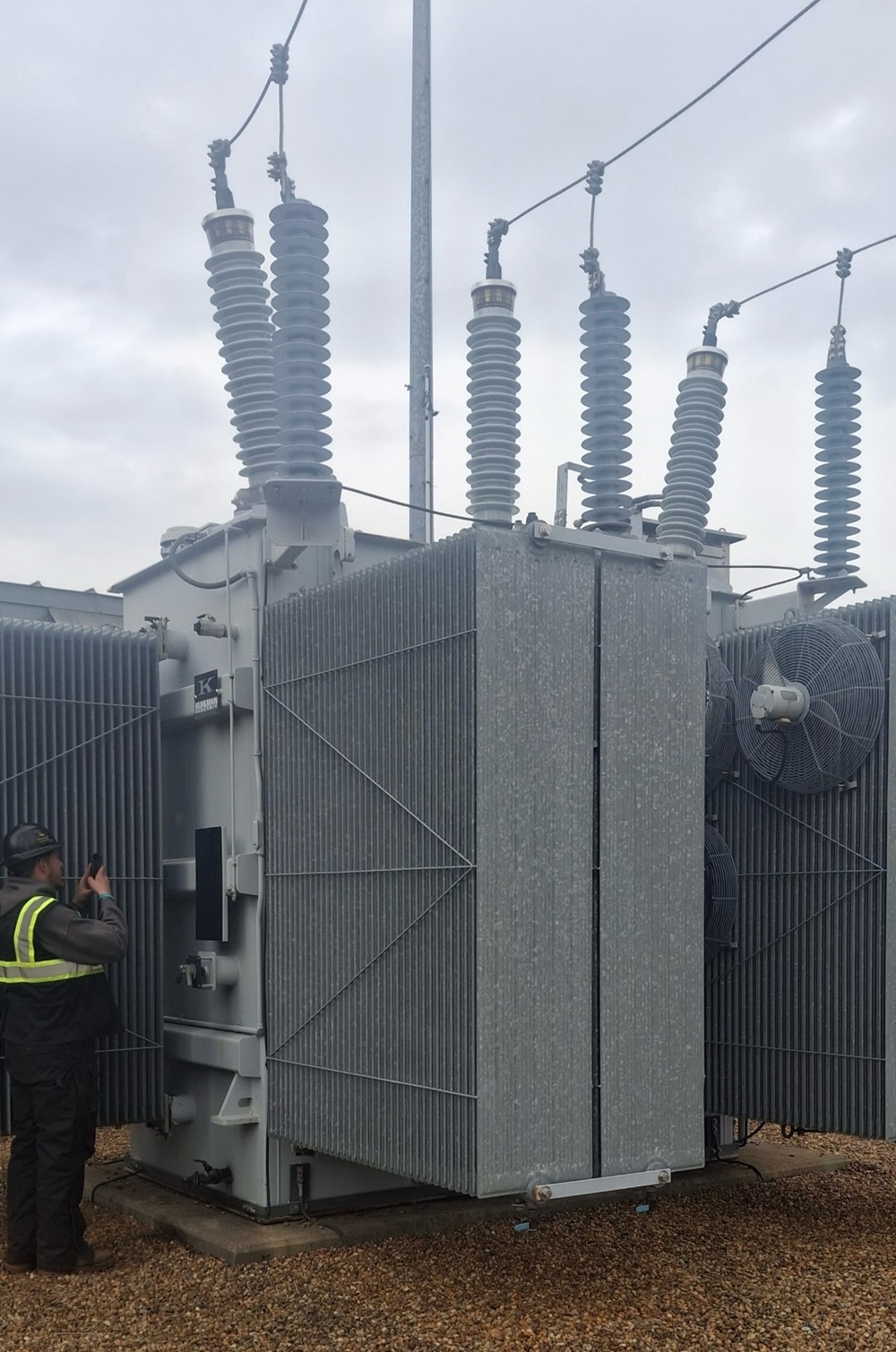

Kuhlman Electric Load Tap Changing Transformer 138 kV Delta to 26.4 X 13.2 kV Wye

  • Size: 7/8.4/9.375/10.3 MVA
  • HV_H: 138000
  • HV 2:
  • Dual HV:
  • HV TC Type: Off Circuit Tap Switch
  • LV_1_X: 26400
  • LV_2_Y: 13200
  • LV2 Type:
  • Dual LV: 1
  • LV TC Type: Load Tap Changer LTC
  • See Notes: Yes
  • High Voltage Vector: Delta
  • Low Voltage Vector: Wye
  • High 2 Voltage Vector:
  • Low 2 Voltage Vector: Wye
  • High Voltage Bushing: Top Mounted
  • Low Voltage Bushing: Top Mounted
  • HV2 Bushing:
  • LV2 Bushing:
  • Station Type: Substation Stepdown
  • Live Dead:
  • Feed:
  • Type: Oil Filled
  • Width:
  • Length:
  • Height:
  • Weight: 111537
  • Phase: 3
  • HZ: 53
  • DOM: 1981
  • MFG: Kuhlman Electric

Request a quote:
