Kuhlman Electric Substation Transformer 34.5 kV Delta – 12.47 kV Wye
Product ID: 5381

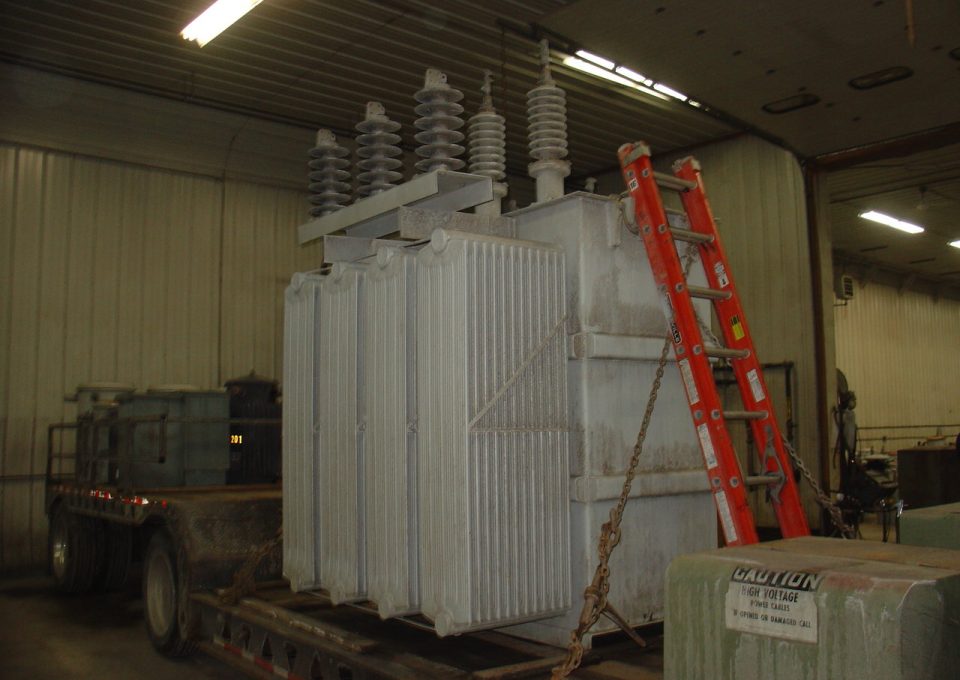

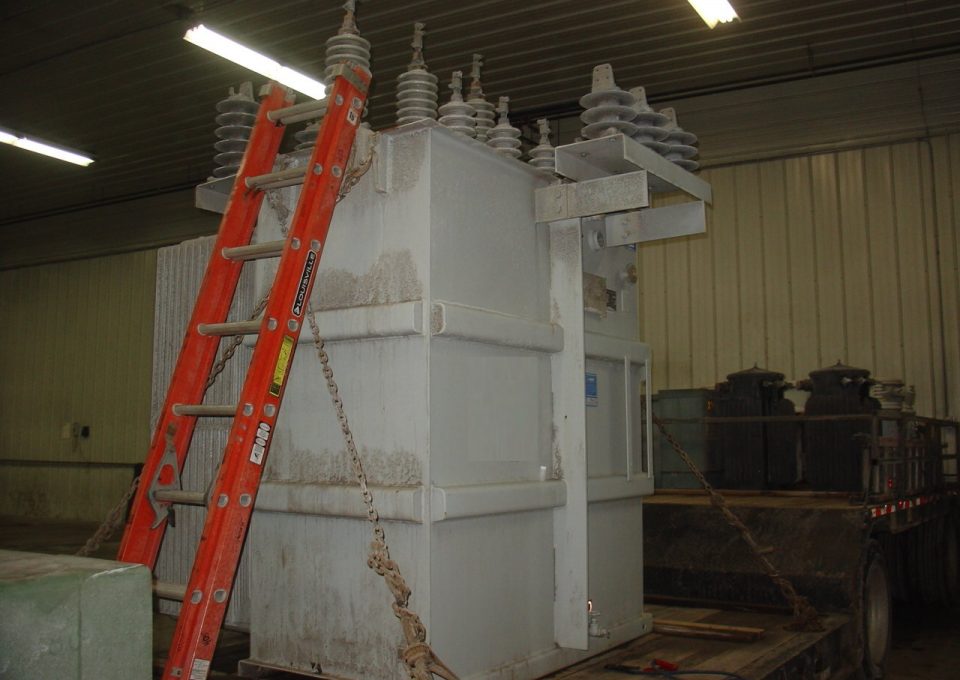

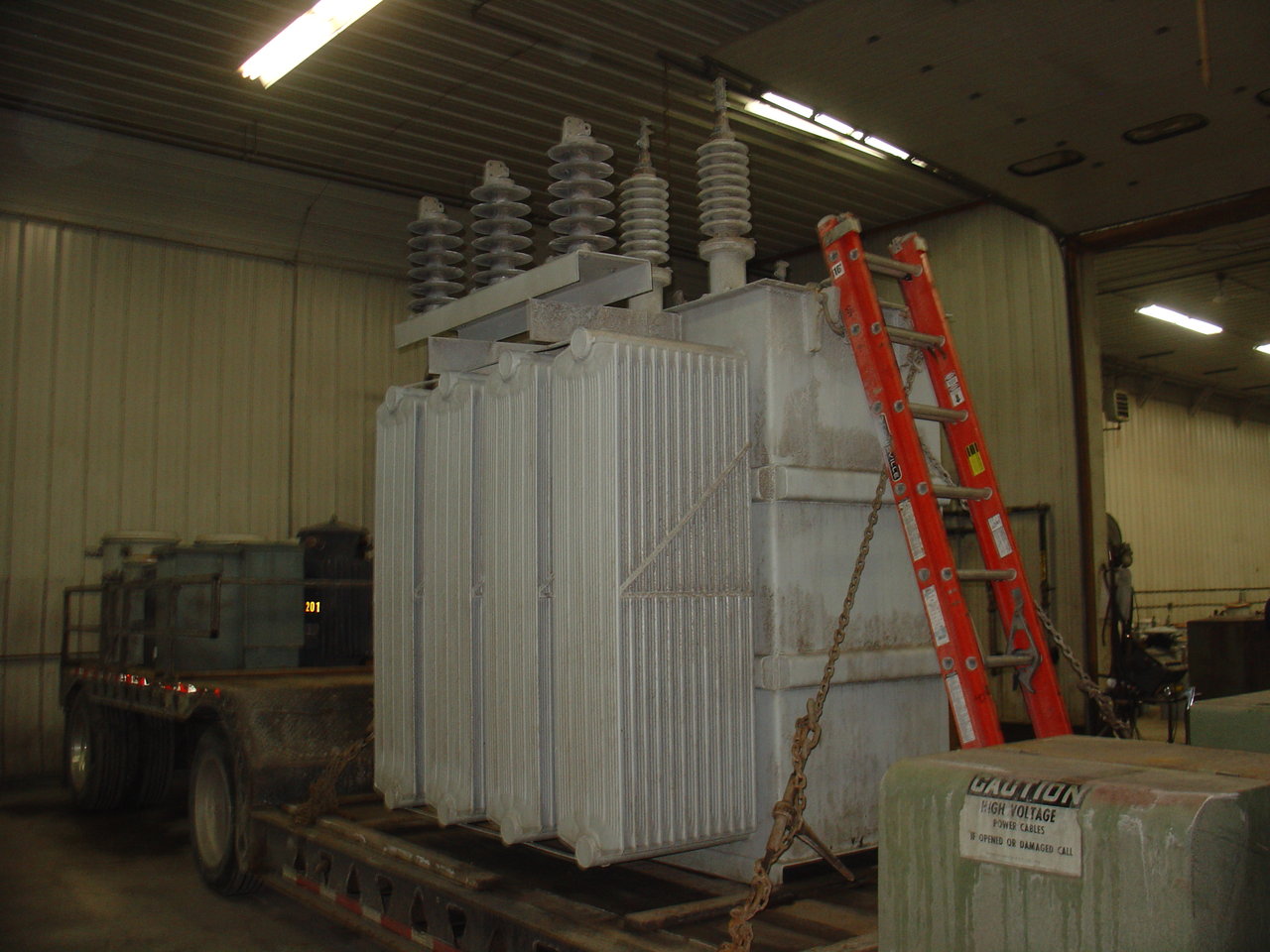

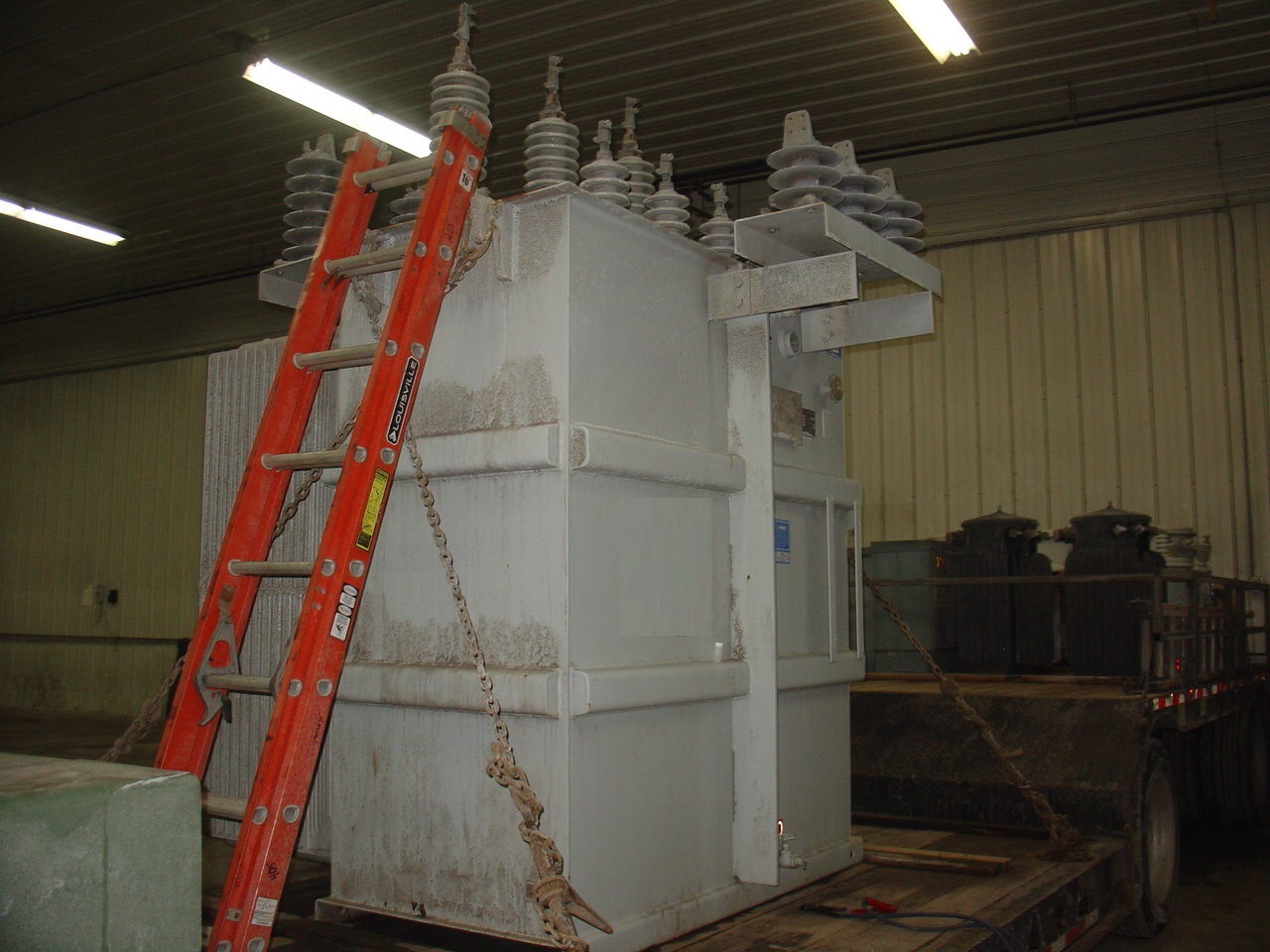

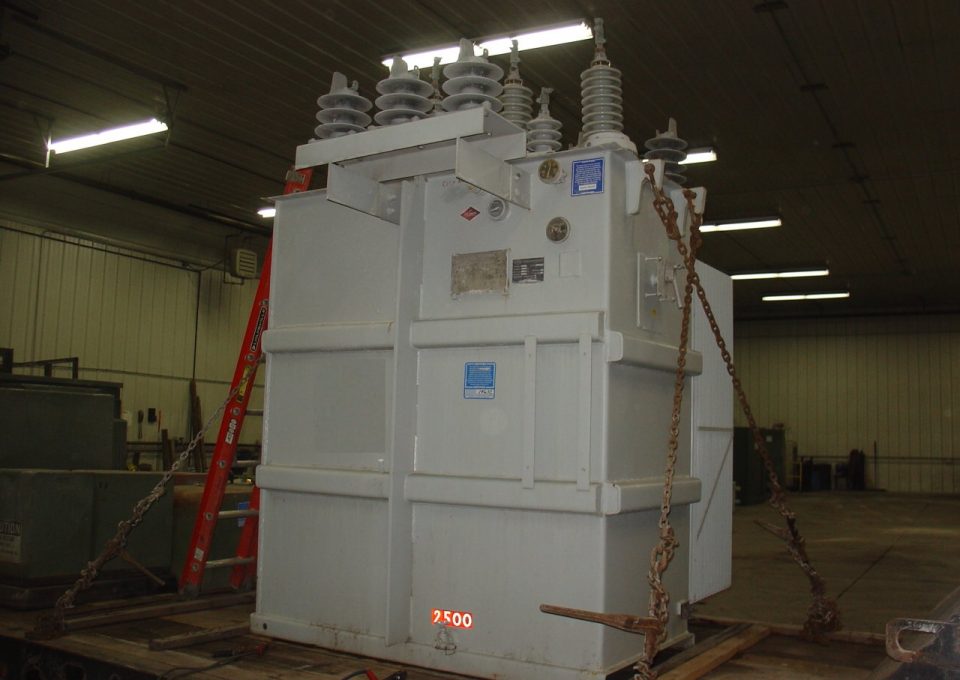

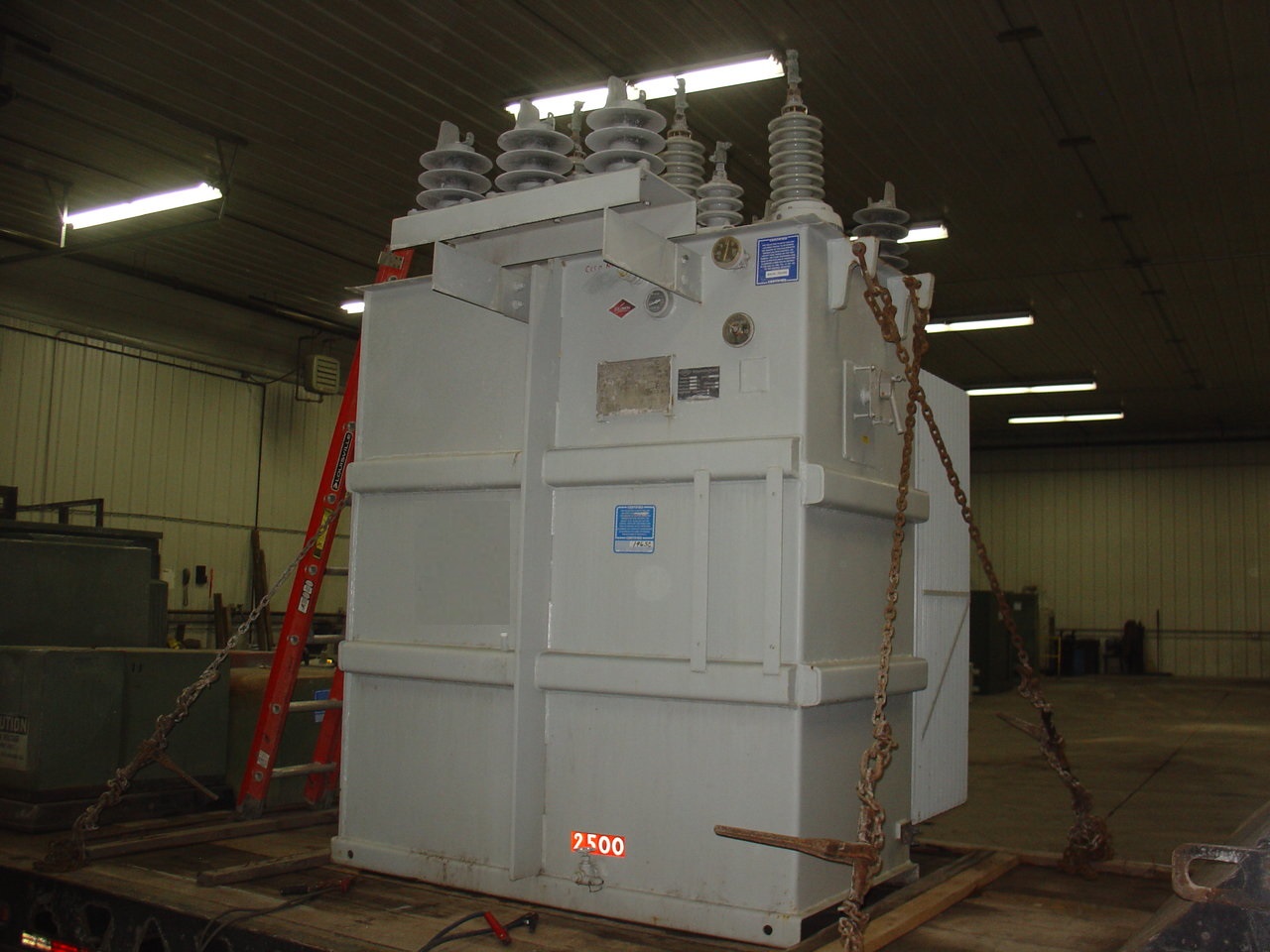

Kuhlman substation stepdown transformer, oil filled, 2500 kva, 2.5 MVA
- Size: 2.5 MVA
- HV_H: 34500
- HV 2:
- Dual HV:
- HV TC Type:
- LV_1_X: 12470
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: False
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Mounted
- Low Voltage Bushing: Top Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Sub Station
- Live Dead:
- Feed:
- Type: Oil filled
- Width:
- Length:
- Height:
- Weight:
- Phase: 3
- HZ: 60
- DOM:
- MFG: Kuhlman
