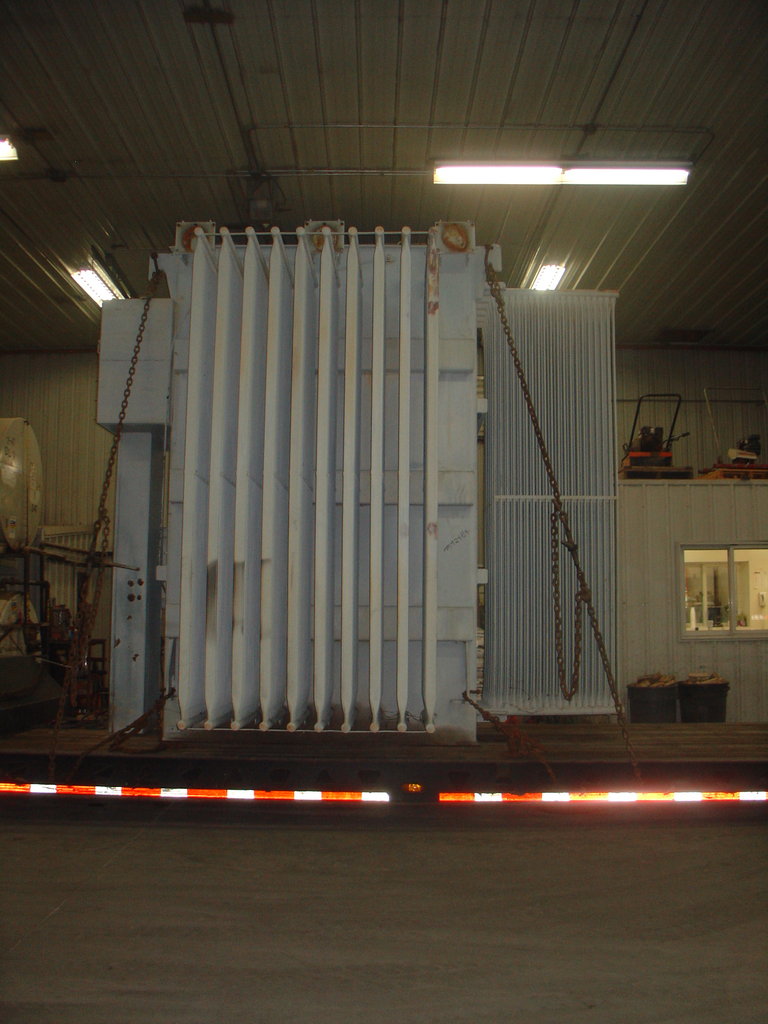

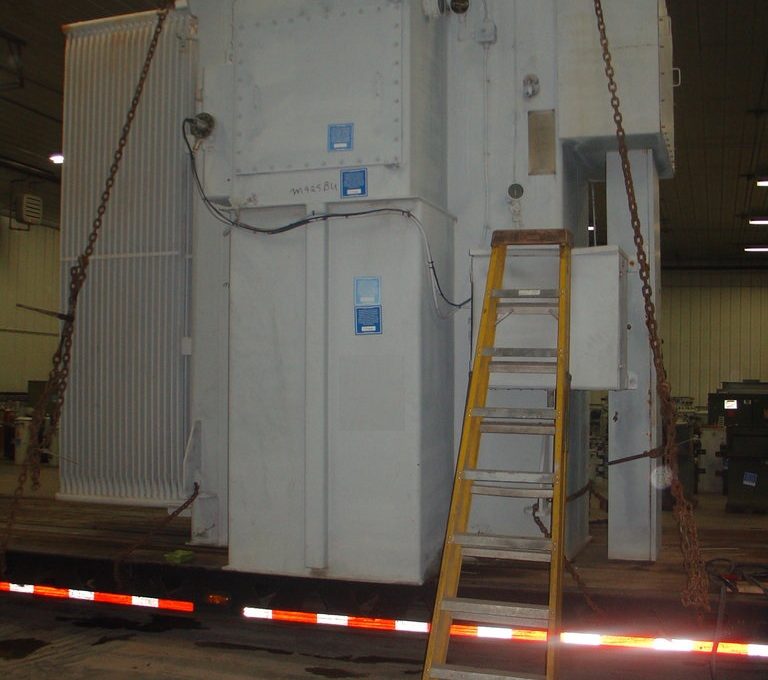

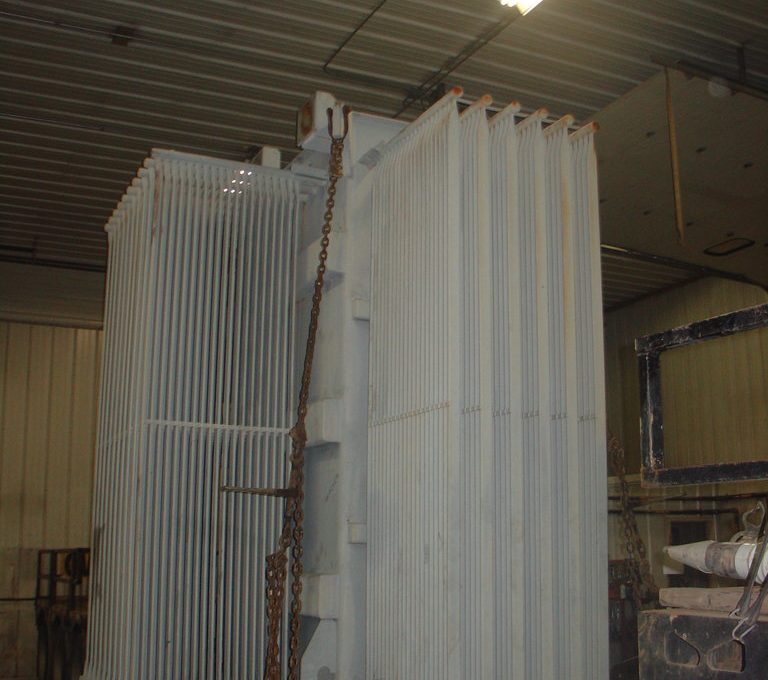

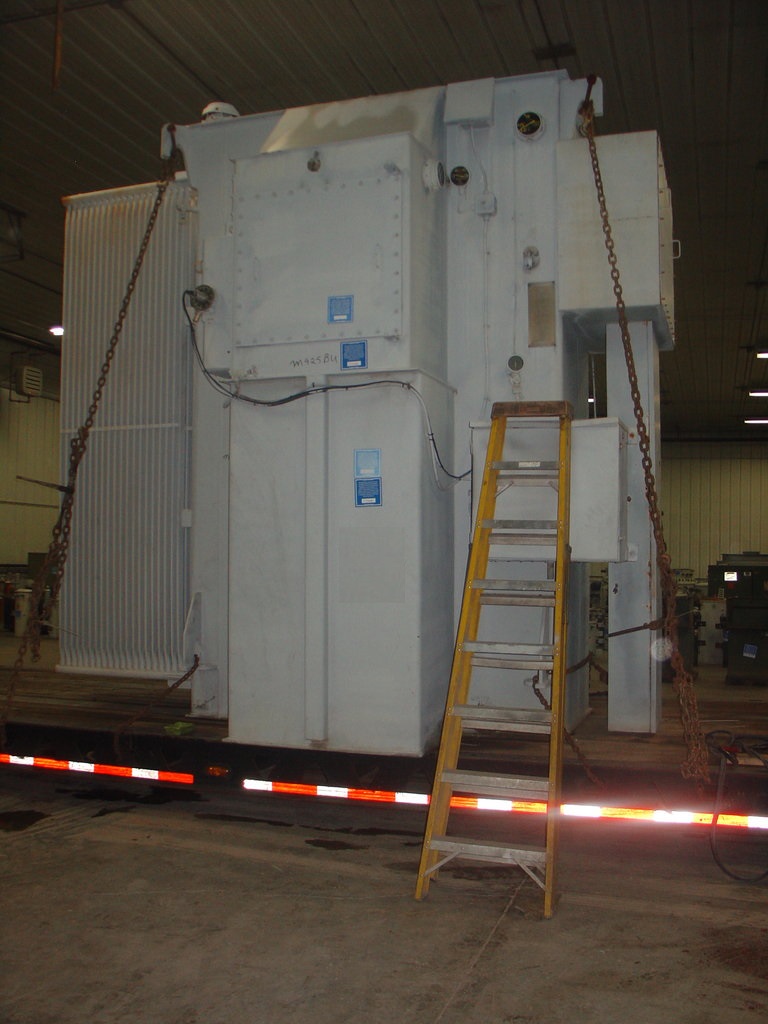

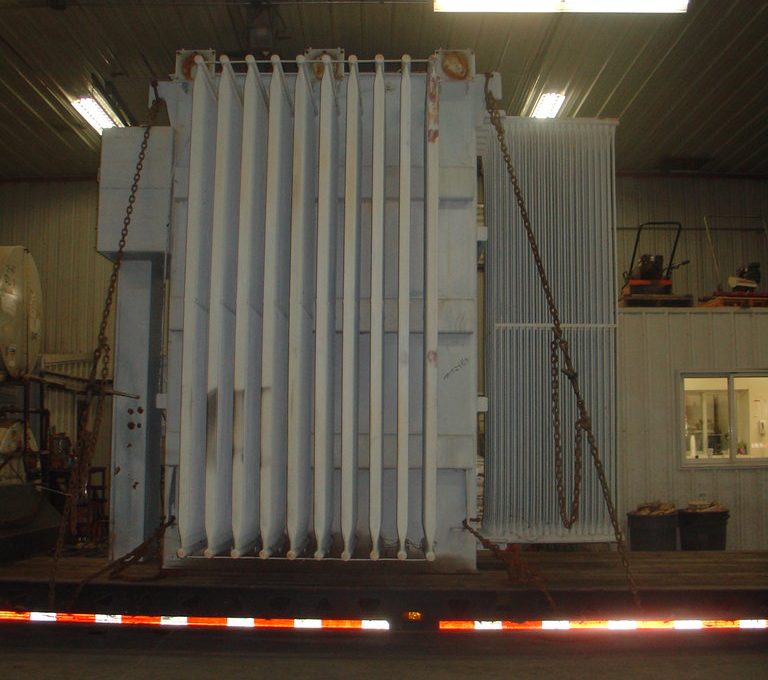

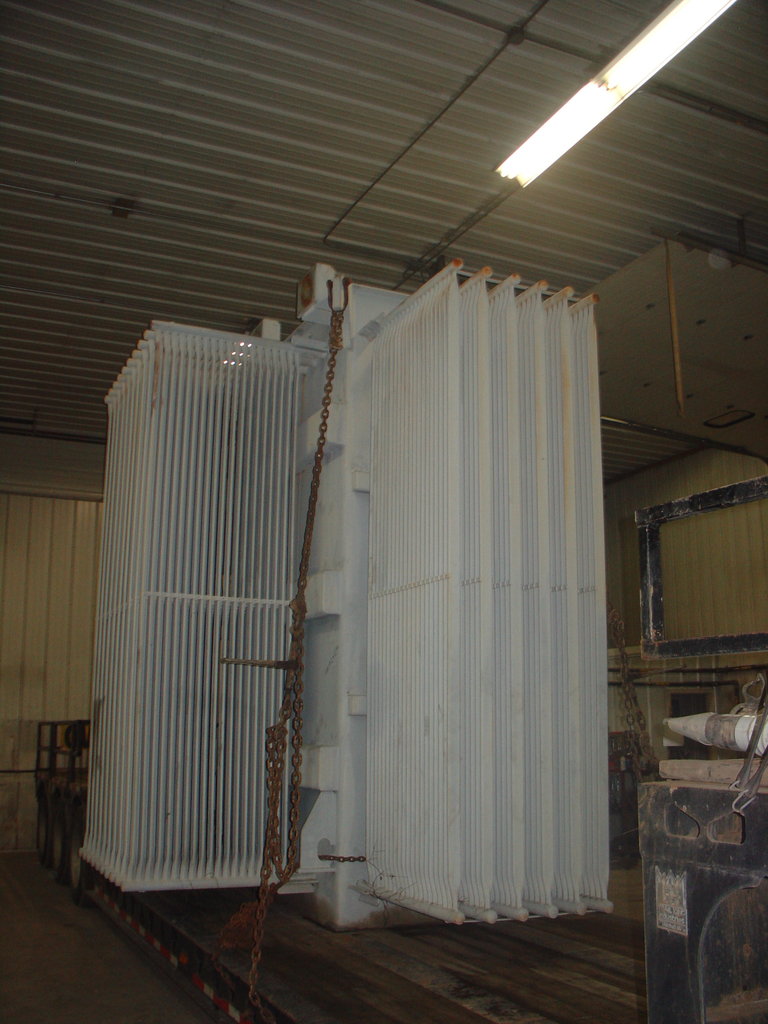

7500 kva Westinghouse Substation
Product ID: 5672
7500/8400 kva 34.4 kV Delta to 4.16 kV Wye Substation Stepdown Transformer with Load Tap Changer
- Size: 7.5/8.4 MVA
- HV_H: 34400
- HV 2:
- Dual HV:
- HV TC Type: Off Load Tap Changer
- LV_1_X: 4160
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type: Load Tap Changer
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Mounted
- Low Voltage Bushing: Side wall Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil Filled
- Width:
- Length:
- Height:
- Weight: 53400
- Phase: 3
- HZ: 60
- DOM: 1973
- MFG: Westinghouse
