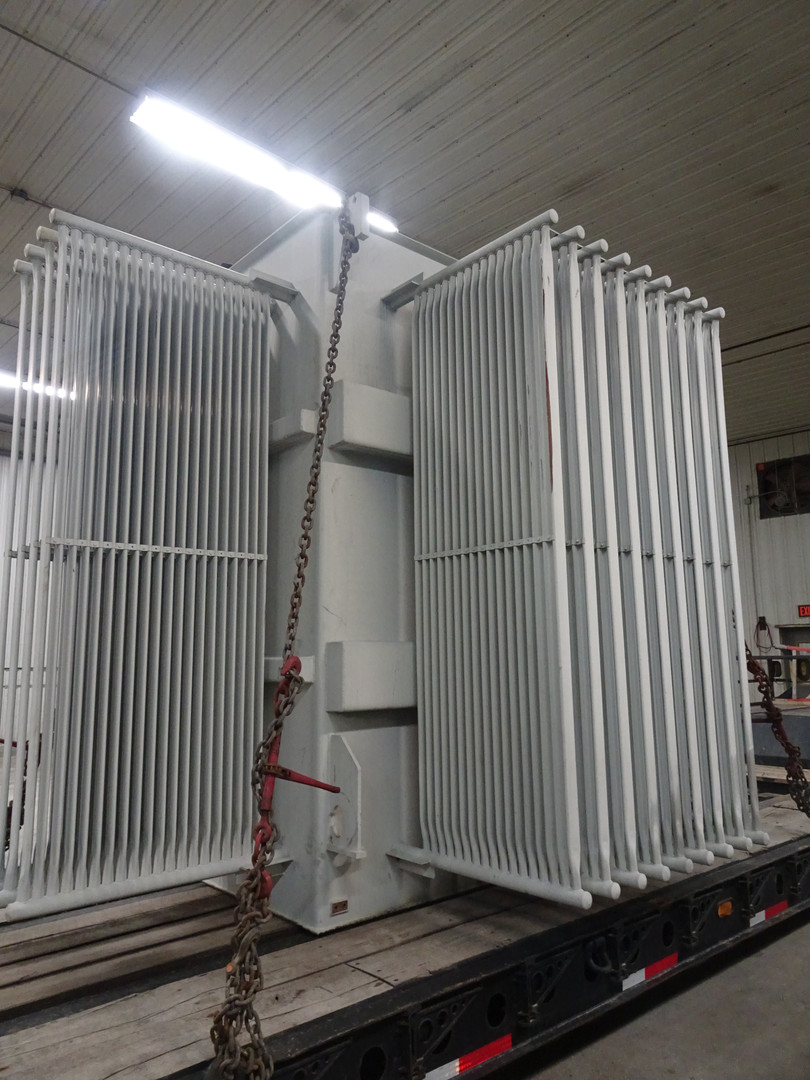

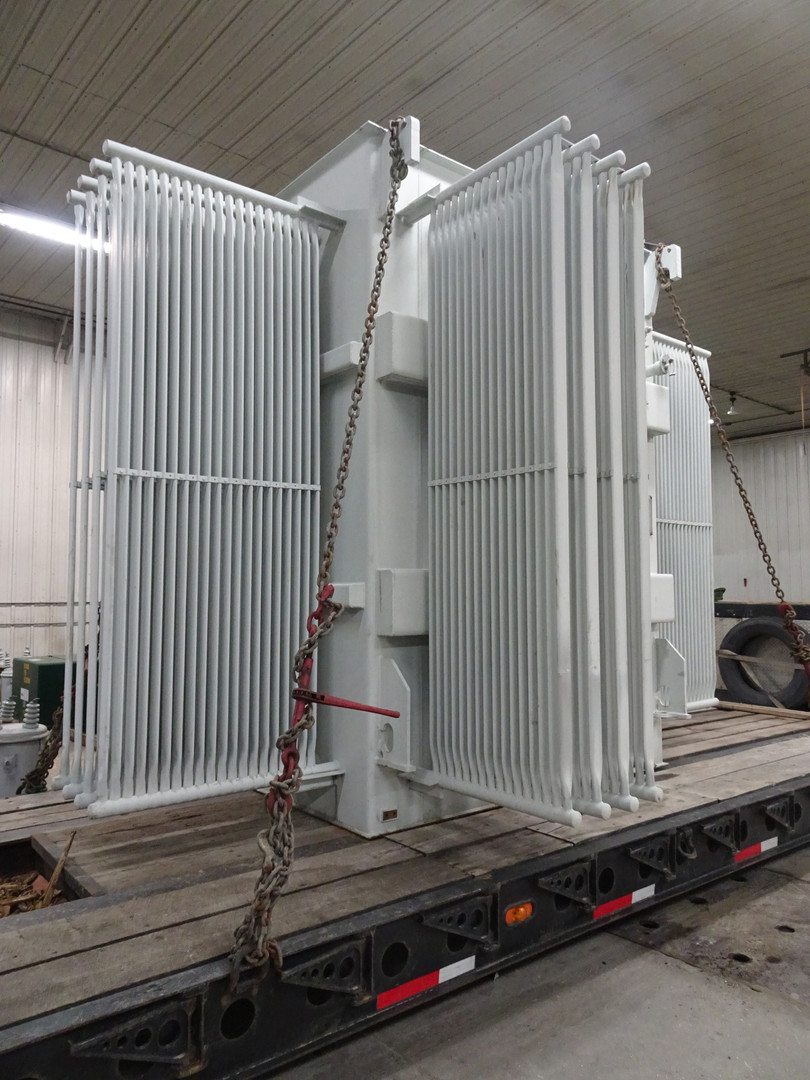

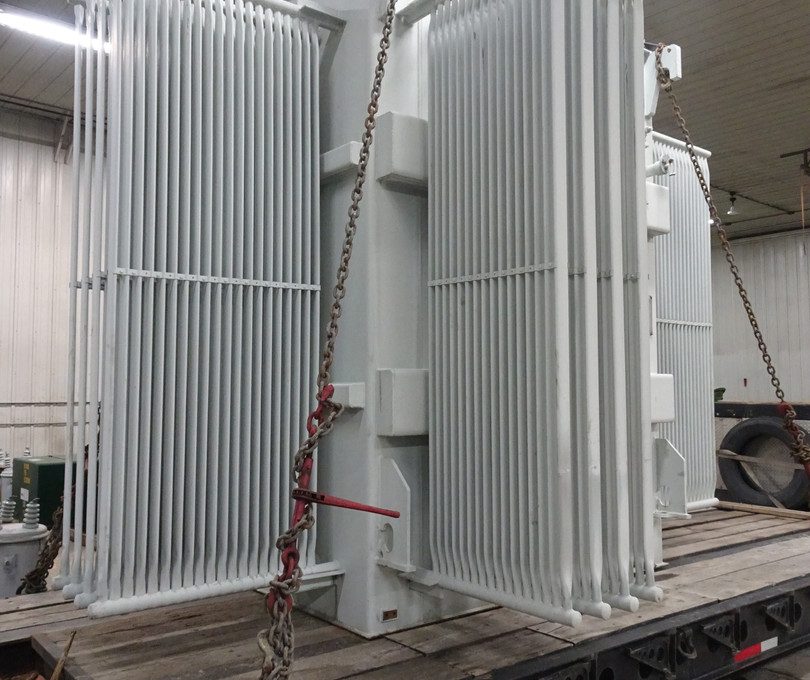

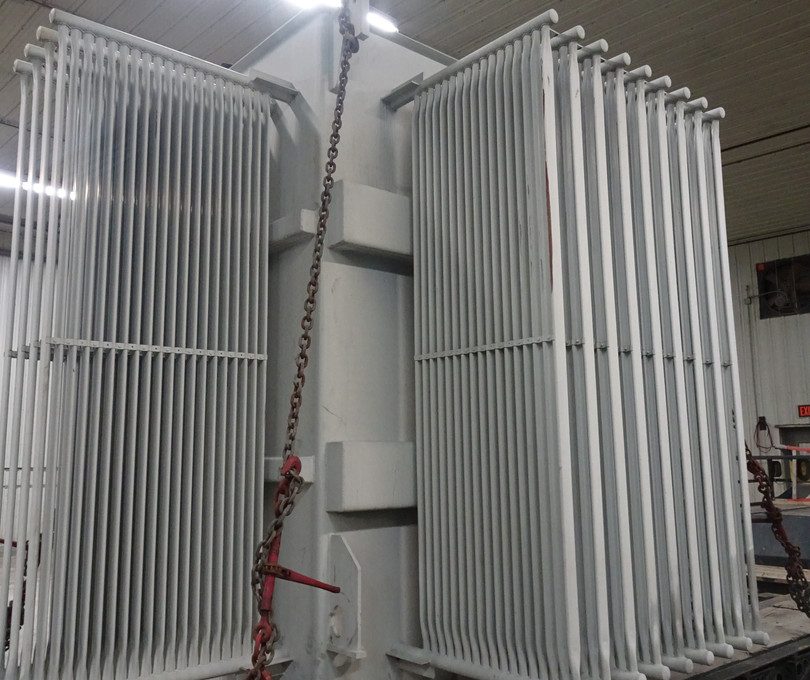

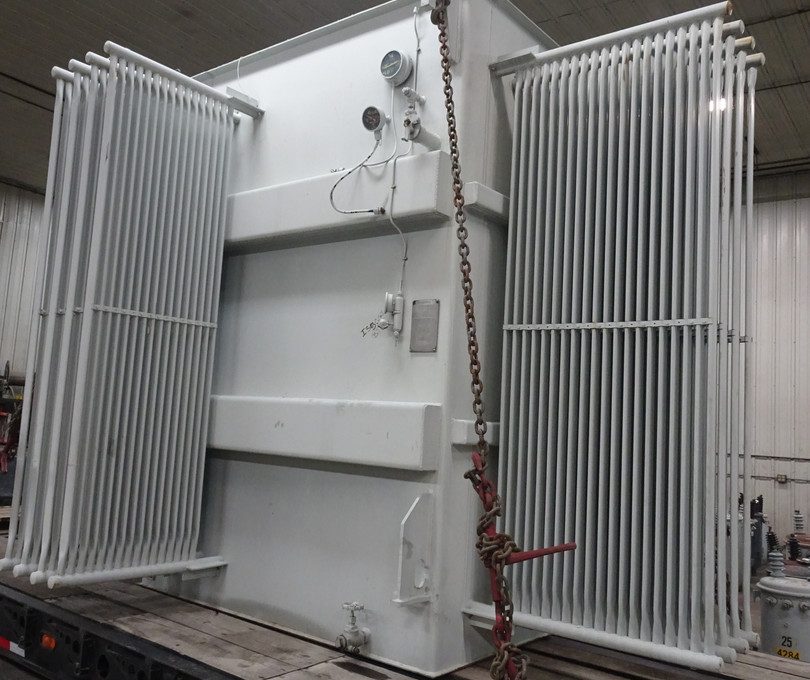

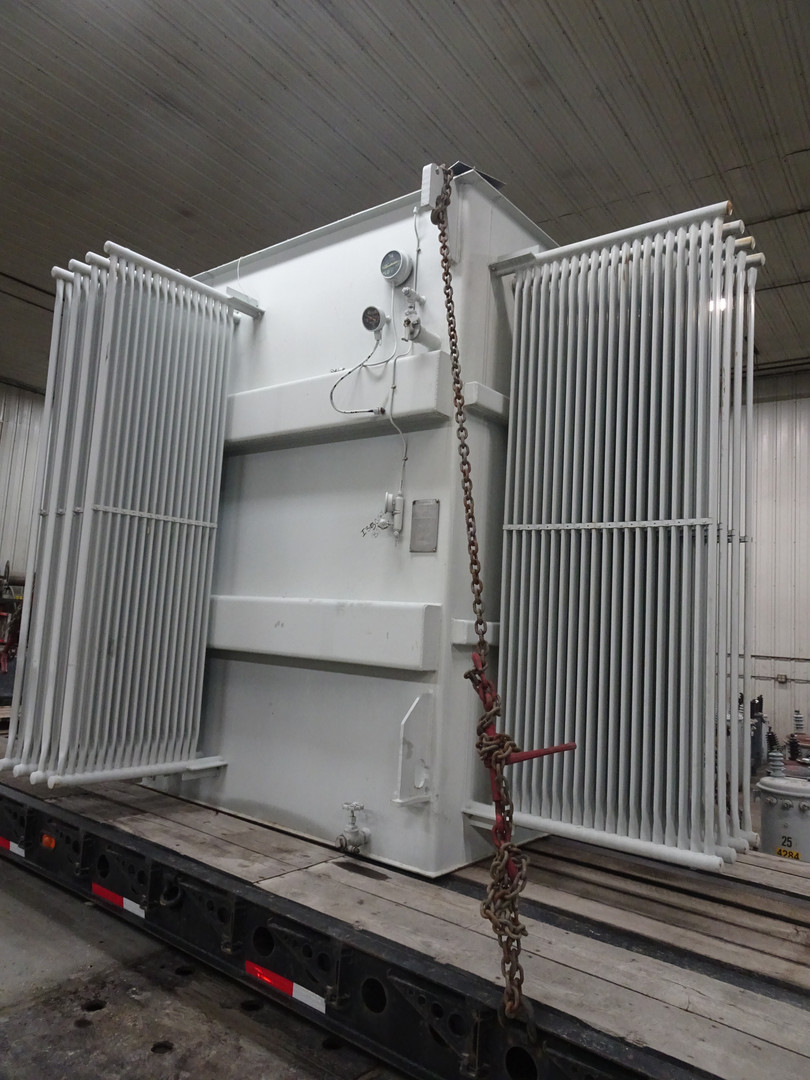

7500 kva Westinghouse Substation Transformer
Product ID: 5719
7500/8400 kva 55/65 C Rise, Mineral Oil Filled Substation Stepdown Transformer, 67000 volts Delta Primary - 12470 volts Wye Secondary. Westinghouse Manufacture
- Size: 7.5/8.4 MVA
- HV_H: 67000
- HV 2:
- Dual HV:
- HV TC Type: Off Load TAp Changer
- LV_1_X: 12470
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top cover mounted
- Low Voltage Bushing: Top cover mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Mineral Oil Filled
- Width: 172
- Length: 1115
- Height: 132
- Weight: 41840
- Phase: 3
- HZ:
- DOM:
- MFG: Westinghouse
