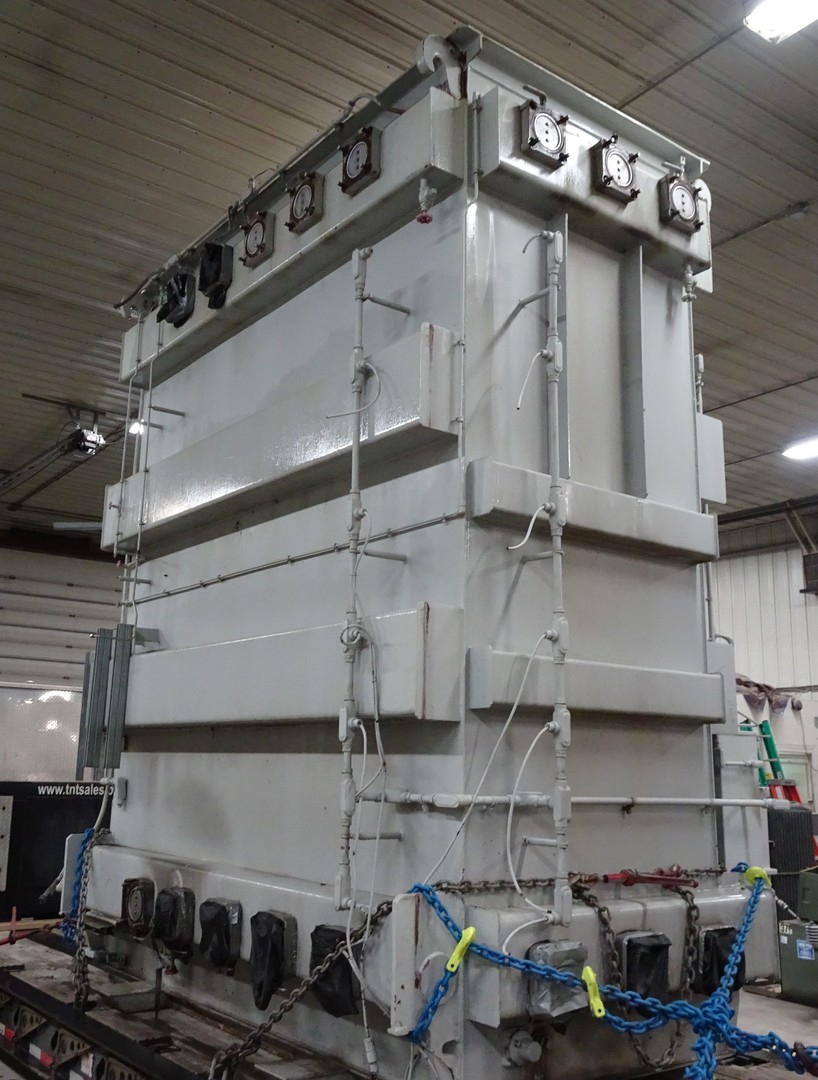

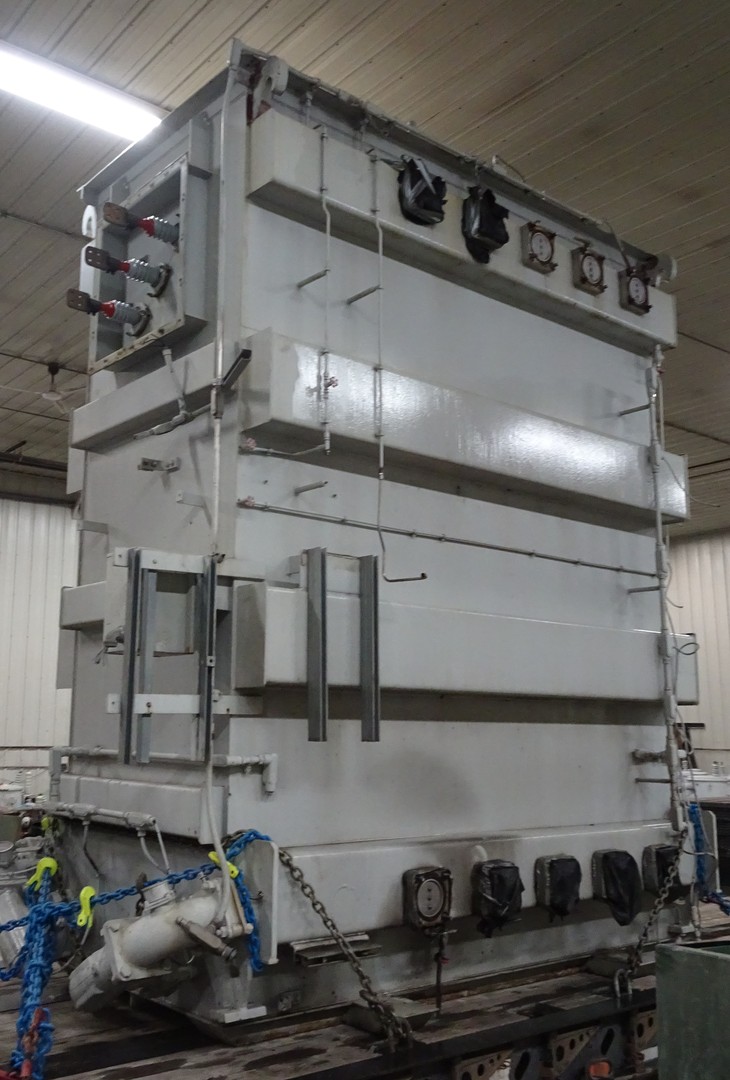

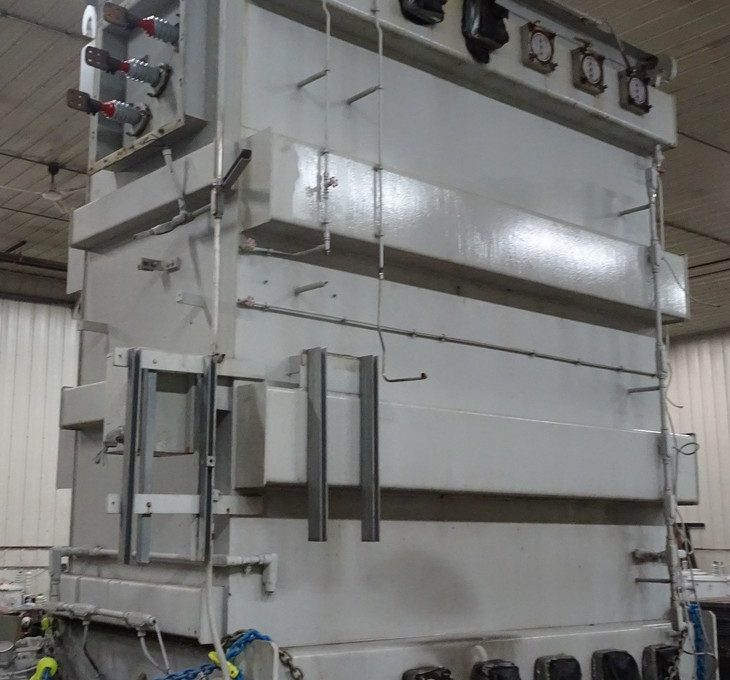

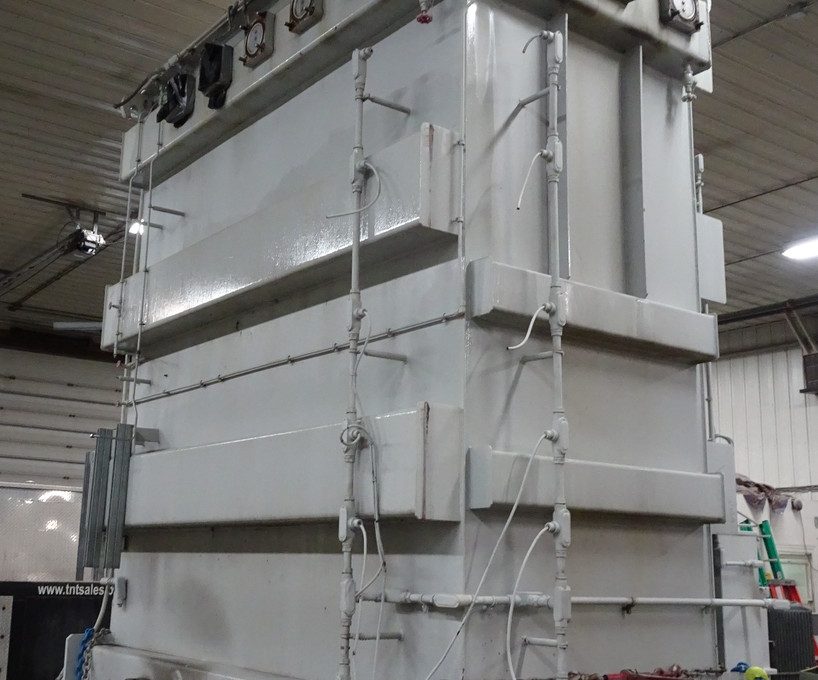

24/32/40/44.8 MVA General Electric Substation Stepdown Transformer
Product ID: 5621
Reconditioned General Electric Substation Stepdown Transformer. Oil filled ready for Immediate delivery. Will deliver with a three year warranty.
- Size: 24/32/40/44.8
- HV_H: 138000
- HV 2:
- Dual HV:
- HV TC Type: OLTC
- LV_1_X: 13800
- LV_2_Y:
- LV2 Type:
- Dual LV:
- LV TC Type:
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top
- Low Voltage Bushing: End Tank wall - Can be relocated
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil
- Width:
- Length:
- Height:
- Weight: 110700
- Phase: 3
- HZ: 60
- DOM: 1979
- MFG: General Electric
