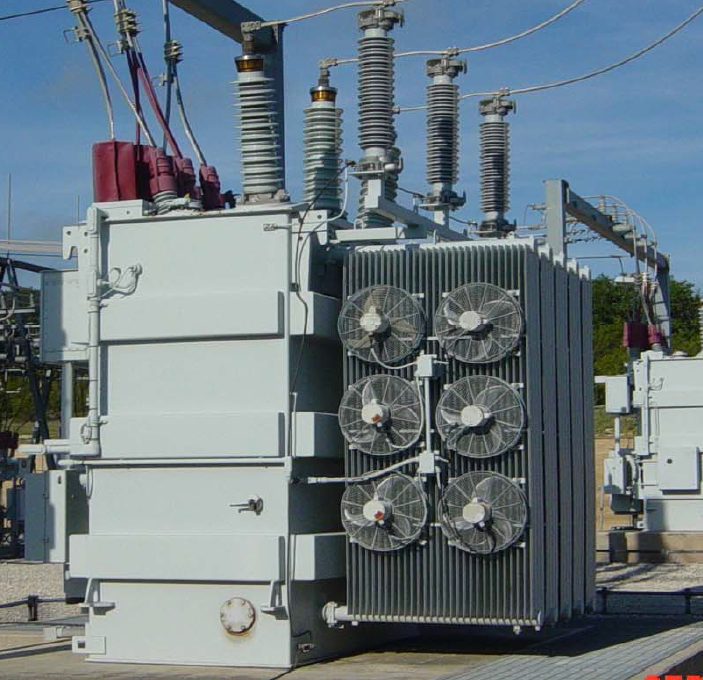

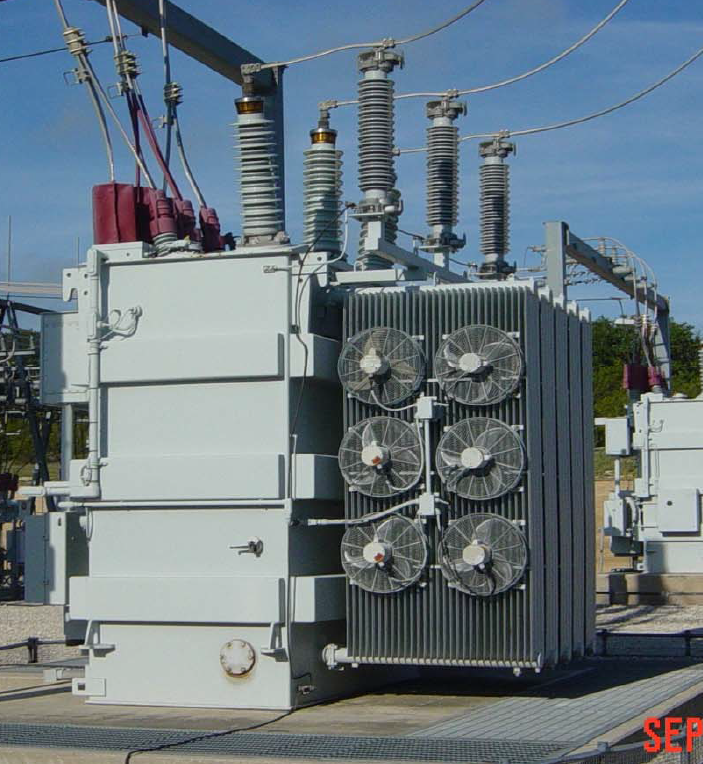

1996 Waukesha LTC Transformer
Product ID: 5663

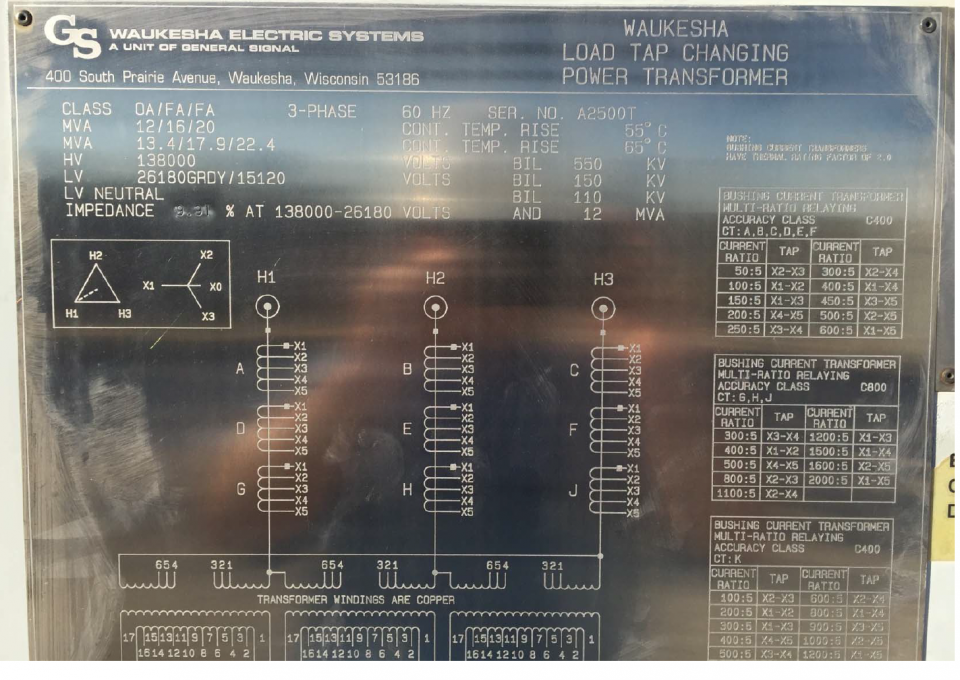

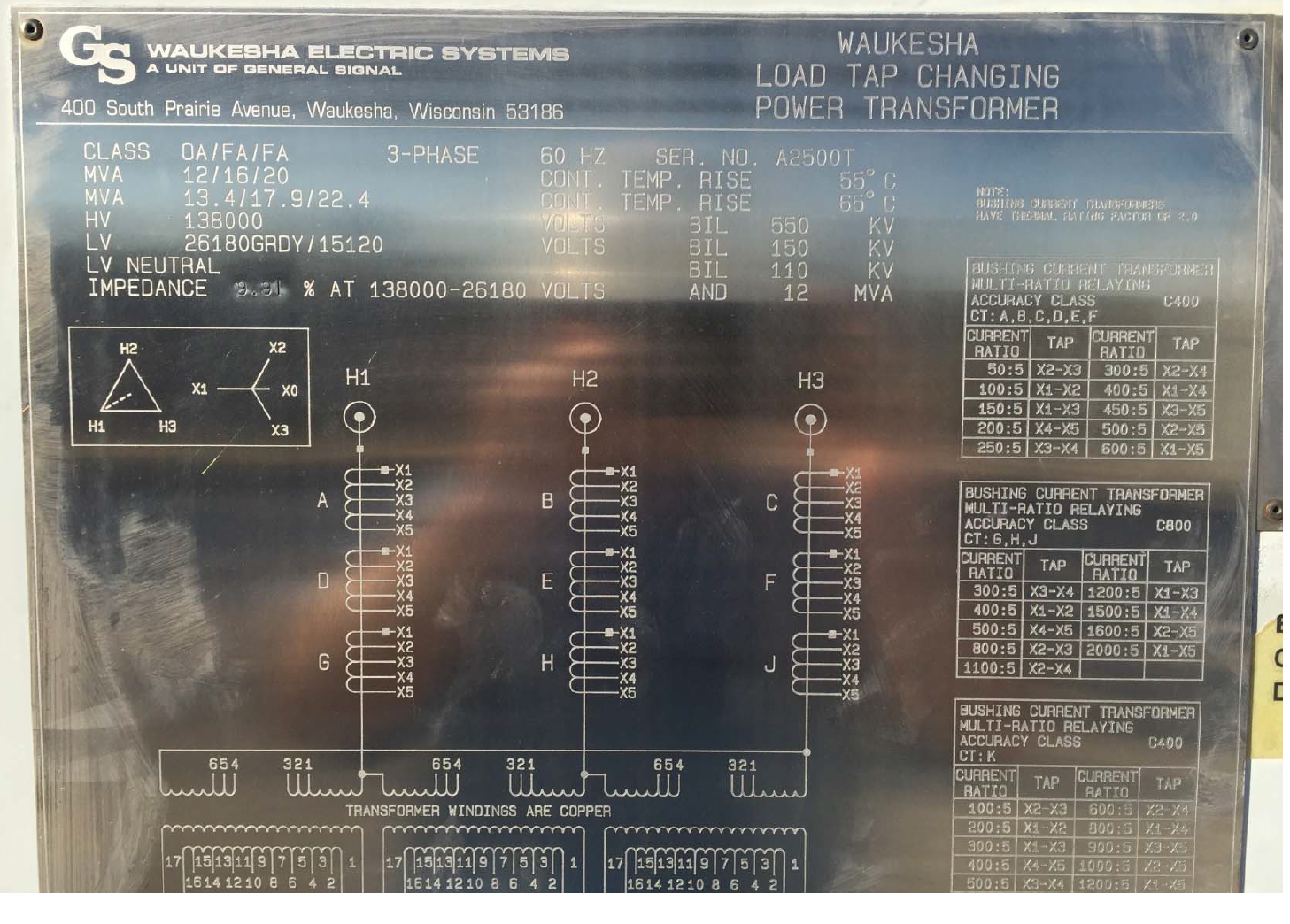

12/16/20 MVA 1996 Waukesha Substation Stepdown Transformer 138 kV Delta Primary, 26.18 kV Wye Secondary, Load Tap Changing Transformer
- Size: 12/16/20 MVA
- HV_H: 138000
- HV 2:
- Dual HV:
- HV TC Type: Off Circuit Tap Switch
- LV_1_X: 26180
- LV_2_Y:
- LV2 Type:
- Dual LV:

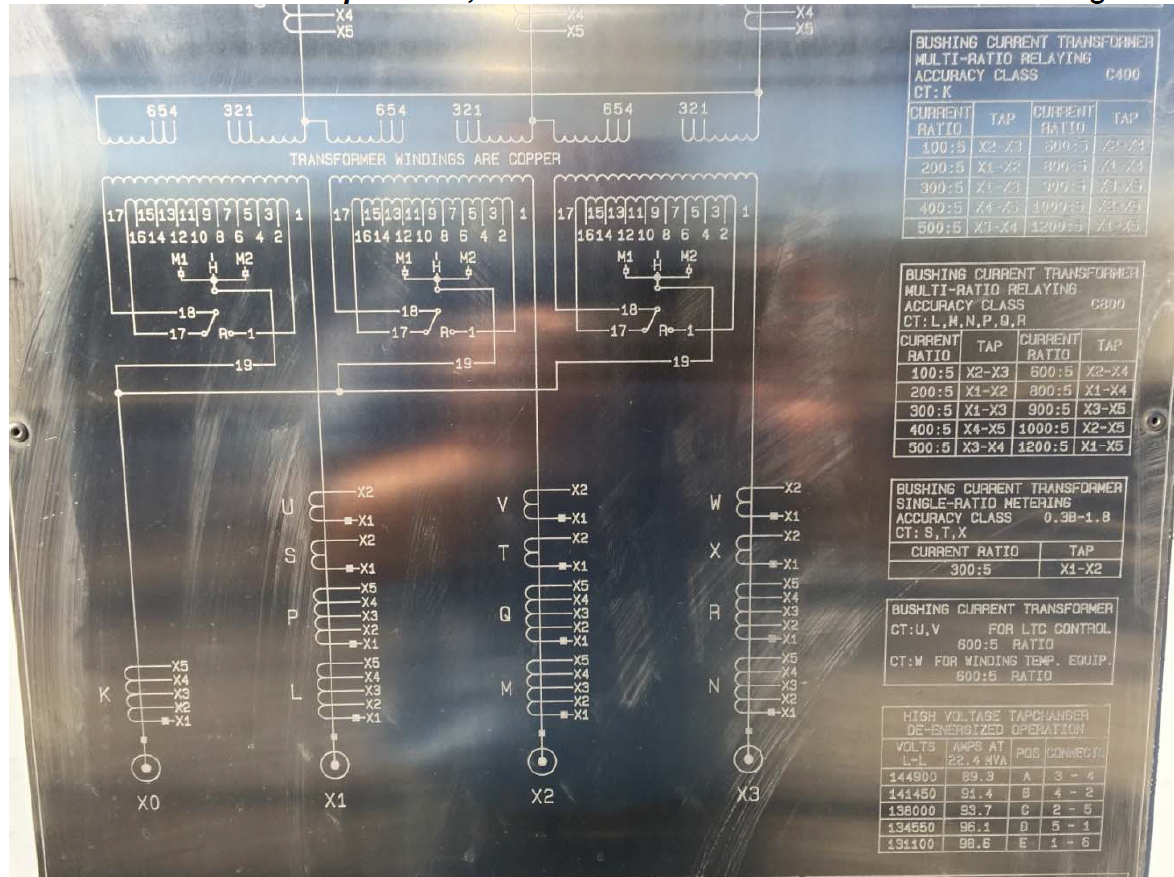

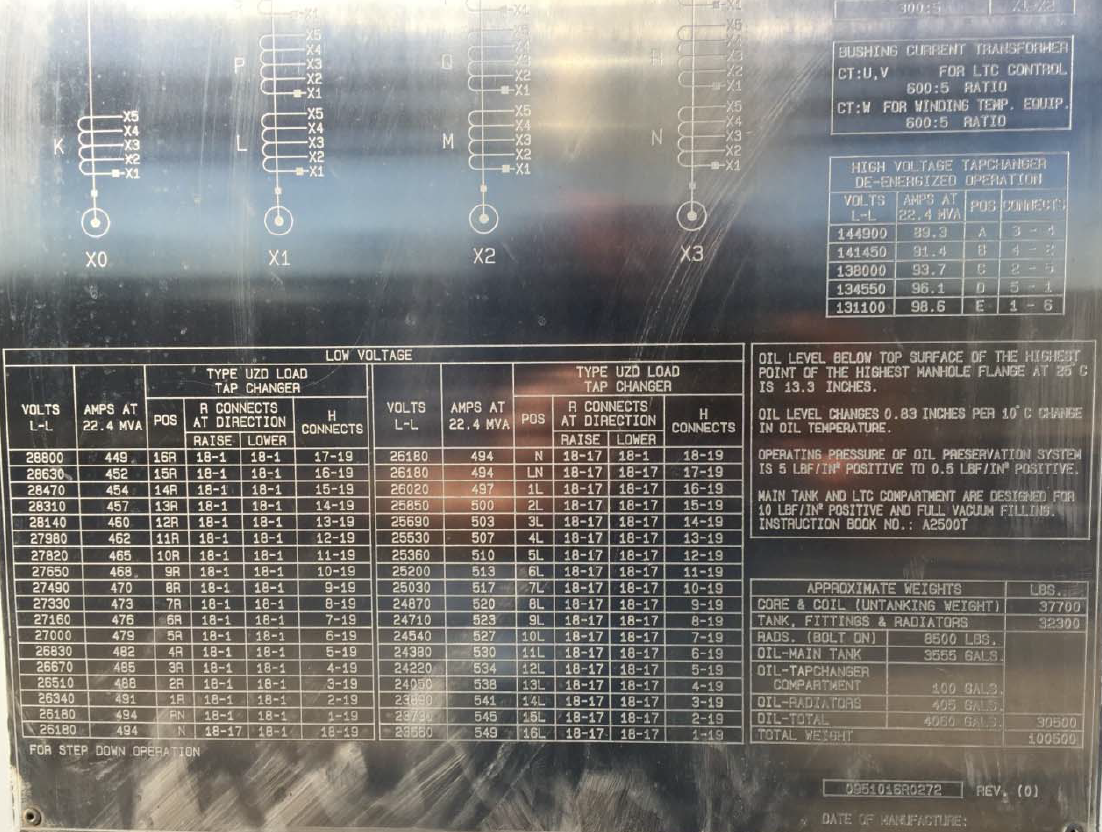

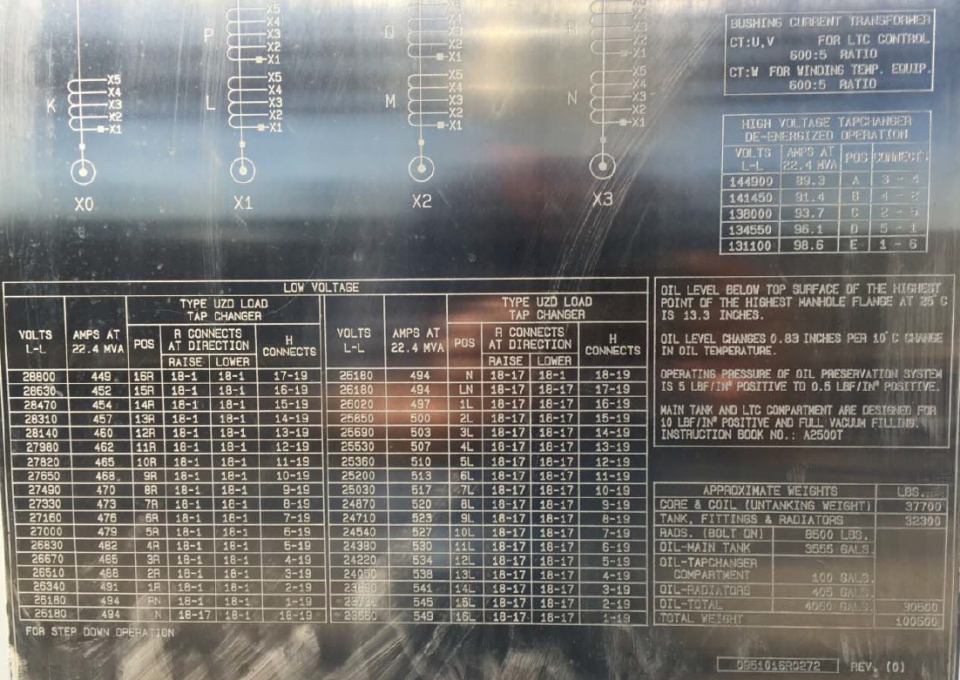

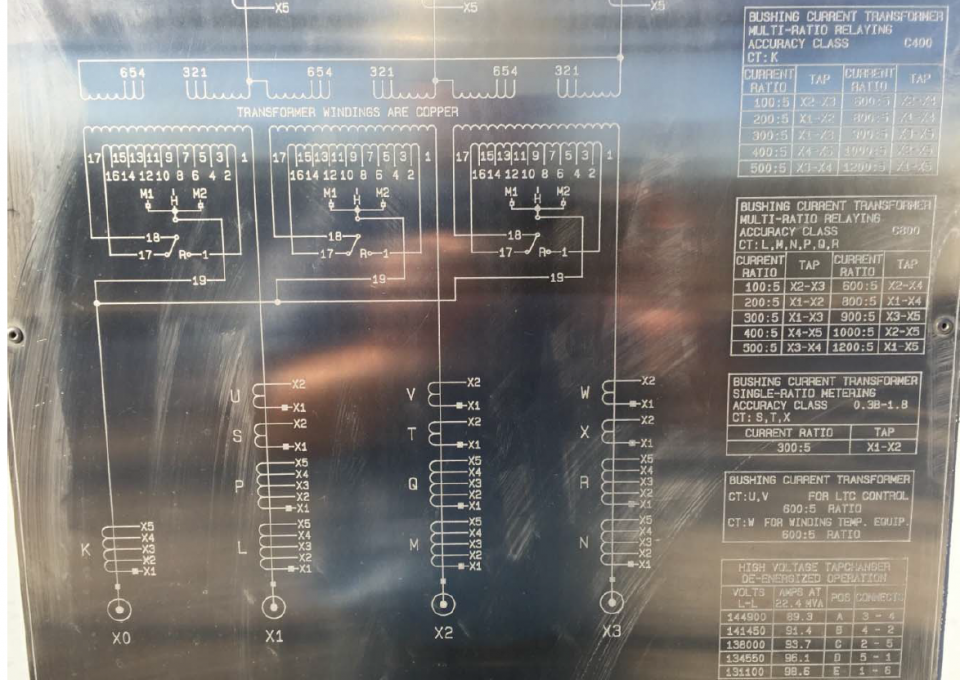

- LV TC Type: Load Tap Changer LTC
- See Notes: Yes
- High Voltage Vector: Delta
- Low Voltage Vector: Wye
- High 2 Voltage Vector:
- Low 2 Voltage Vector:
- High Voltage Bushing: Top Mounted
- Low Voltage Bushing: Top Mounted
- HV2 Bushing:
- LV2 Bushing:
- Station Type: Substation Stepdown
- Live Dead:
- Feed:
- Type: Oil Filled
- Width: 172
- Length: 151
- Height: 212
- Weight: 100500
- Phase: 3
- HZ: 60
- DOM: 1996
- MFG: Waukesha
